Q031 passenger side bag
- Make
- Fiat
- Model
- Panda Factory Service Manual
- Year
- 2003–2012
- Section
- Safety devices › Q031 passenger side bag
Connectors and pin-outsQ031 passenger side bag

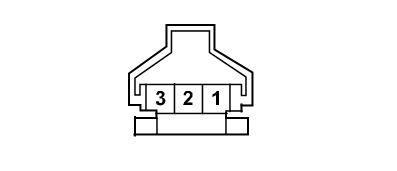

Q031 PASSENGER SIDE BAG
| Wiring | Colour |
|---|---|
| See 25 REAR | arancio |
| Pin | Cable | Destination | |||
|---|---|---|---|---|---|
| Sec. | Colour | Node | Connect. | Pin | |
| 1 | 0,5 | RN | See M060B AIR BAG CONTROL UNIT (REAR) | 23 | |
| 2 | 0,5 | GV | See M060B AIR BAG CONTROL UNIT (REAR) | 24 | |
| 3 | 0,35 | NZ | See C050A AIR BAG SYSTEM EARTH (REAR) | 3 | |
