Q030 driver''s side bag
- Make
- Fiat
- Model
- Panda Factory Service Manual
- Year
- 2003–2012
- Section
- Safety devices › Q030 driver''s side bag
Connectors and pin-outsQ030 driver''s side bag

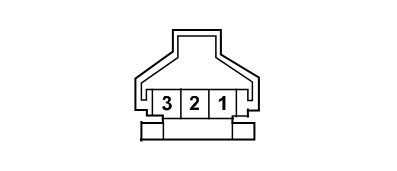

Q030 DRIVER''S SIDE BAG
| Wiring | Colour |
|---|---|
| See 25 REAR | arancio |
| Pin | Cable | Destination | |||
|---|---|---|---|---|---|
| Sec. | Colour | Node | Connect. | Pin | |
| 1 | 0,5 | HR | See M060B AIR BAG CONTROL UNIT (REAR) | 22 | |
| 2 | 0,5 | Z | See M060B AIR BAG CONTROL UNIT (REAR) | 21 | |
| 3 | 0,35 | N | See C050A AIR BAG SYSTEM EARTH (REAR) | 4 | |
