Introduction - DISC BRAKES

Make

Fiat

Model

Panda Factory Service Manual

Year

2003–2012

Section

Disc brakes › Introduction - DISC BRAKES

BrakesIntroduction - DISC BRAKES

Introduction - DISC BRAKES

The following front brake disc equipment is provided for this vehicle:

• 1.1 8v: solid discs, 240 mm diameter
• 1.2 8v: solid discs, 240 mm diameter
• 1.3 jtd: ventilated discs, 240 mm diameter

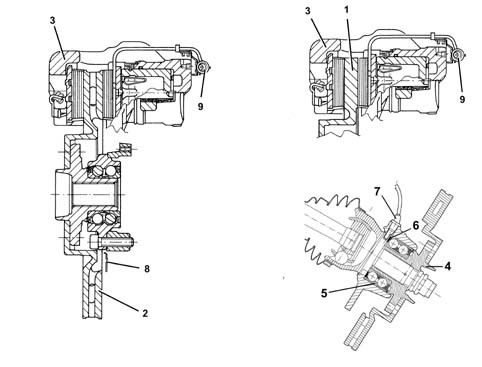

1 - Solid brake disc

2 - Ventilated brake disc

3 - Brake caliper

4 - Wheel hub

5 - Wheel hub bearing

6 - Magnetic ring

7 - Active ABS sensor

8 - Guard

9 - Brake pad wear warning light connection

13 Brakes
