SENSOR-FLYWHEEL SIGNAL CHECK

Check 3340AA

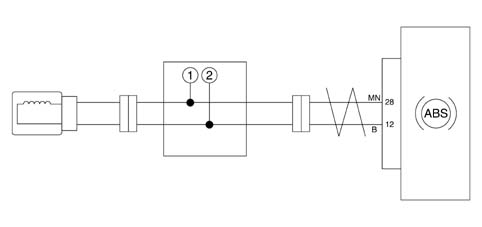

- Connect switch AD-266 between the wiring and the ABS sensor

- Insert the diagnostic equipment probes in bushes 1 and 2 of the adapator.

- After the diagnostic equipment has been switched on, enter the "INSTRUMENT" ambient.

- Under the "VOLTMETER" function select 20V as the end of scale and 2 seconds as the basic time.

- Manually rotate the wheel and when the speed is 4-6 km/h press the START button.

Check that the signal acquired looks the one illustrated without "holes".

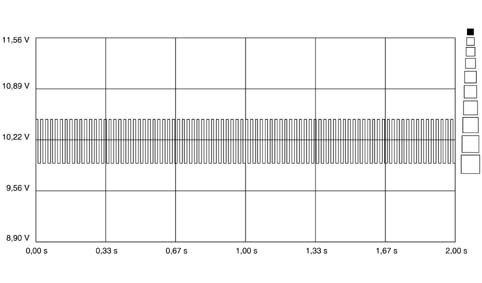

Regular signal between sensor-flywheel (Rotation speed: 4-6 Km/h)

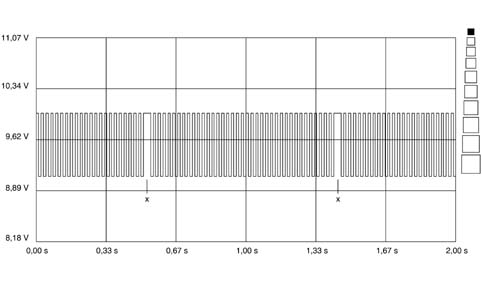

Irregular signal due to the presence of magnetic slag (point X) on the flywheel magnetic race (Rotation speed 4-6 km/h).

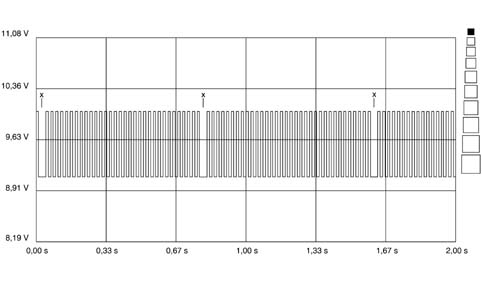

Irregular signal due to the presence of magnetic slag (point X) on the flywheel magnetic race (Rotation speed 4-6 km/h).

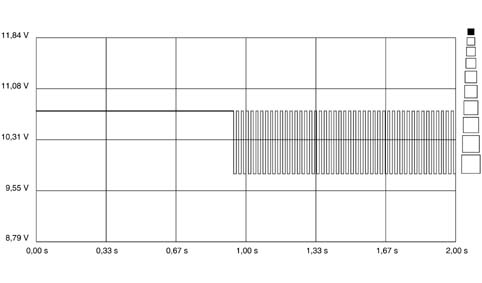

Irregular signal for wheel rotating after Start

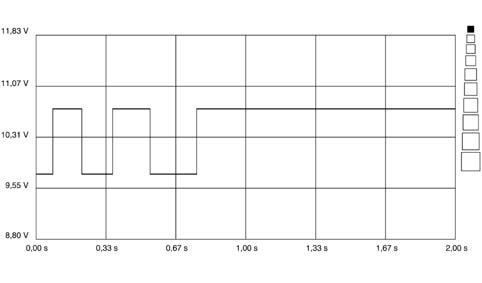

Irregular signal due to wheel stopped during acquisition
