Code - location of components

Make

Alfa Romeo

Model

GT Factory Service Manual

Year

2003–2010

Section

Vehicle electronic systems › Code - location of components

Wiring diagrams and electrical functionsCode - location of components

CODE - LOCATION OF COMPONENTS

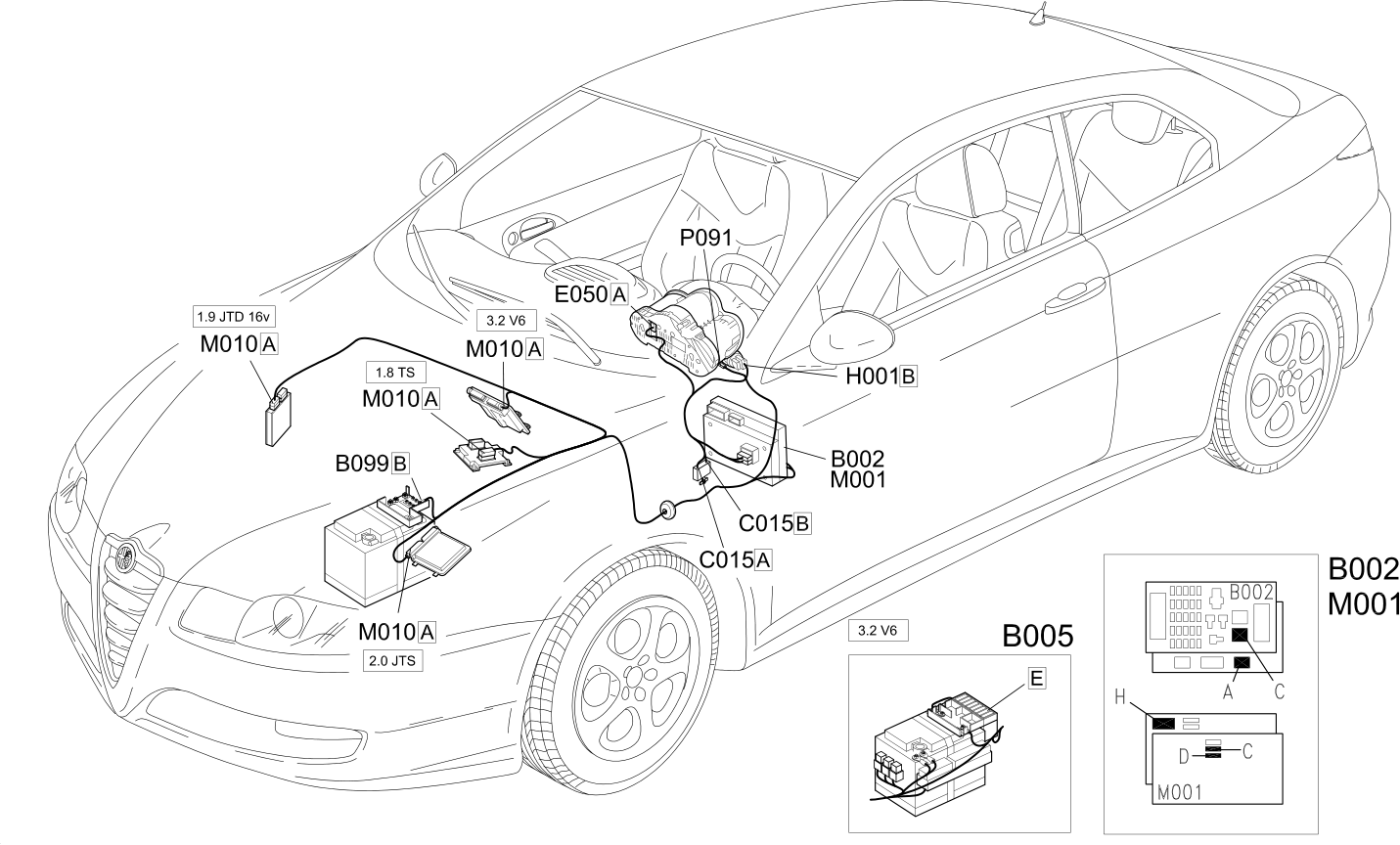

Location of components

Components

Component code	Name	Assembly reference
B1	JUNCTION UNIT
B2	JUNCTION UNIT UNDER DASHBOARD	Op. 5505A MULTI-FUNCTION COMPONENTS
B5	MAXI FUSE-1 BOX
B99	MAXIFUSE BOX ON BATTERY	Op. 5530B BATTERY AND LEADS
C15	FACIA EARTH, DRIVER''S SIDE
E50	INSTRUMENT PANEL	Op. 5560B ANALOGUE CONTROL PANEL
H1	IGNITION SWITCH	Op. 5520A IGNITION SWITCH
M1	BODY COMPUTER	Op. 5505A MULTI-FUNCTION COMPONENTS
M10	ENGINE MANAGEMENT ECU	1056B
M10	ENGINE MANAGEMENT ECU	Op. 1060G PRESSURE PUMP ELECTRIC CONTROL
P91	AERIAL FOR FIAT-CODE	Op. 5580E ANTI-THEFT DEVICE
