D212 Bumper rear coupling

Make

Alfa Romeo

Model

GT Factory Service Manual

Year

2003–2010

Section

Intermediate couplings › D212 Bumper rear coupling

Connectors and pin-outsD212 Bumper rear coupling

D212 Bumper rear coupling

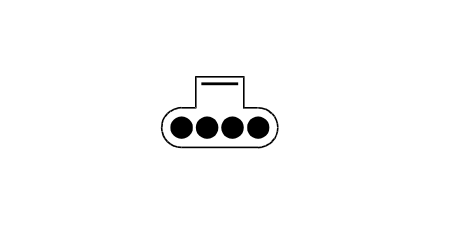

D212A – Rear

Wiring	Colour
25 REAR	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1		BH		M1E	9
2		NZ		C30	4
3		BH		M1E	38
4		NZ		C30	2

D212A

Wiring	Colour
Connectors	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1		BH		F50	1
2		NZ		F50	2
3		BH		F51	1
4		NZ		F51	2

Parking sensor

Wiring	Colour
Connectors	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1		BH		D212C	5
2		NZ		D212C	6
3		BH		D212C	7
4		NZ		D212C	8

D212B – Rear

Wiring	Colour
25 REAR	GRIGIO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1		H		M1E	31
2		N		C30	1
3		BN		B2D	8
4		NZ		C30	5

D212B

Wiring	Colour
Connectors	GRIGIO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1		H		F32	1
2		N		F32	2
3		BN		F33	1
4		NZ		F33	2

Parking sensor

Wiring	Colour
Connectors	GRIGIO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1		H		D212C	1
2		N		D212C	2
3		BN		D212C	3
4		NZ		D212C	4

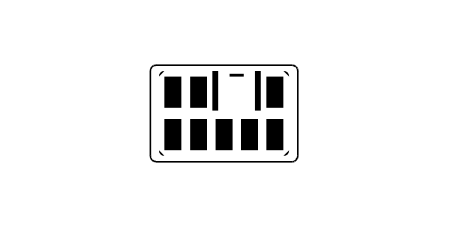

D212C – Rear

Parking sensor

Wiring	Colour
25 REAR	BIANCO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1		H		M1E	31
2		N		C30	1
3		BN		B2D	8
4		NZ		C30	5
5		BH		M1E	9
6		NZ		C30	4
7		BH		M1E	38
8		NZ		C30	2

D212C

Parking sensor

Wiring	Colour
Connectors	BIANCO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1		H		D212B	1
2		N		D212B	2
3		BN		D212B	3
4		NZ		D212B	4
5		BH		D212A	1
6		NZ		D212A	2
7		BH		D212A	3
8		NZ		D212A	4
