CLUTCH PEDAL - R+R

Operation 3330B26 · PEDAL UNIT

Removing

Ensure that the ignition key is in the OFF position, then disconnect the negative battery terminal (-).

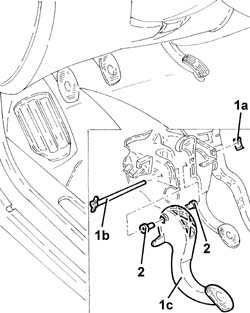

1. Remove the clip (1a) and release the rod (1b) for the clutch master cylinder from the pedal.

1. Remove the stop clip (1a), withdraw the pin (1b) and remove the clutch pedal (1c).

2. Keep the bushes.

Refitting

Place the clutch pedal, complete with bushes, back in its housing and secure it to the brake pedal using the pin and the stop clip.

Connect the rod for the clutch master cylinder to the pedal and secure it using the clip.

Connect the negative (-) battery terminal

1.8 T.SPARK, 2.0 JTS, 3.2 V6

Proceed with removal

1056B78 SWITCH on CLUTCH PEDAL - R.R.

1.9 JTD 16V

Proceed with removal

Op. 1060G42 CLUTCH PEDAL SWITCH - R R

Proceed with refitting

Op. 1060G42 CLUTCH PEDAL SWITCH - R R.

1.8 T.SPARK, 2.0 JTS, 3.2 V6

Proceed with refitting

1056B78 SWITCH on CLUTCH PEDAL - R.R.
