VEHICLE TOWING POINTS

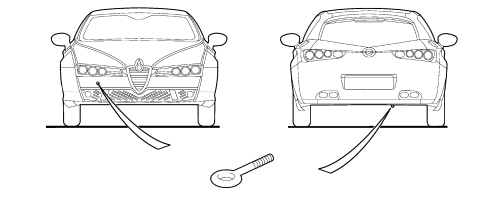

The vehicle is equipped with a tow hook located in the automatic Fix&Go container.

To fit the tow hook on the front, proceed as follows:

- undo the plug on the front bumper to gain access to the threaded pin on the body;

- take the tow hook out of its container;

- fully tighten the ring on the threaded front pin.

To fit the tow hook on the rear, proceed as follows:

- take the tow hook out of its container;

- fully tighten the ring on the threaded rear pin.

VEHICLE TOWING POINTS

General warnings

When towing the vehicle, it is compulsory to resepct specific highway code regulations relating to the tow hook and procedures for towing on the road.

Before towing, make sure that the tow hook is fully tightened.

Clean the threaded seat carefully before tightening the hook.

Insert the key in the switch (Teg reader) and DO NOT EXTRACT IT !

If the key is extracted the steering lock will come on automatically and it will be impossible to steer the wheels.

If you need to tow a vehicle with a flat batery, release the electric steering lock by supplying the vehicle with an auxiliary battery and inserting the key in the switch (Teg reader) to release the steering lock. Then turn off the power supply without extracting the key; the electric steering lock will remain released and the car may be towed.

When towing, exercise greater force on the brake pedal and the steering wheel is stiffer because the brake servo and the power assisted steering are not operational.

The towing vehicle should be driven at as even a pace as possible to prevent counter-shocks.

Do not use flexible cables when towing and avoid jerky movements.

During towing operations, be careful that the fastening joining the joint to the vehicle does not damage adjacent components.

Do not start the engine whilst the vehicle is being towed.

For 4x4 versions, it is advisable to tow the vehicle only in one of the following ways to avoid damaging the transmission components.

- with the front wheels raised and the rear wheels standing on a trolley;

- with the rear wheels raised and the front wheels standing on a trolley;

- loaded on the bed of the rescue vehicle with all four wheels on the floor.
