EngineIntroduction - engine air supply circuit

INTRODUCTION - ENGINE AIR SUPPLY CIRCUIT

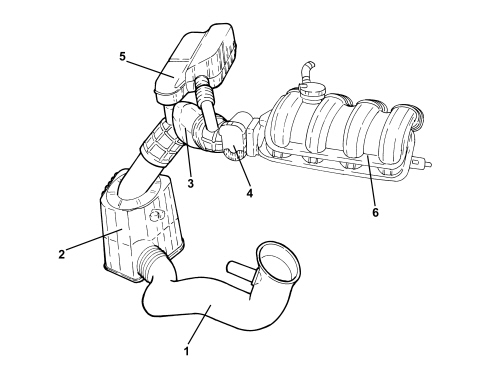

2.2 JTS

VIEW OF ASSEMBLY

1. Cold air intake with resonator

2. Air filter assembly

3. Air flow meter

4. Throttle body

5. Resonator

6. Intake chamber

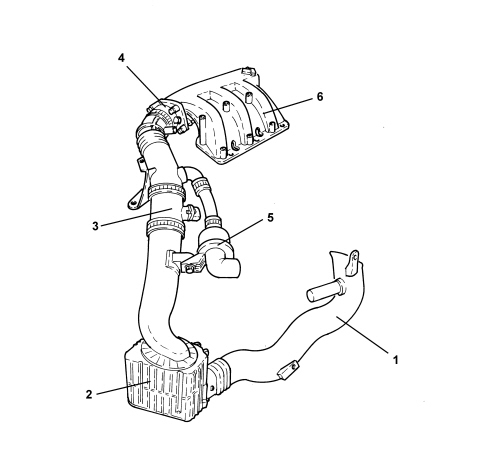

3.2 JTS

VIEW OF ASSEMBLY

1. Cold air intake with resonator

2. Air filter assembly

3. Air flow meter

4. Throttle body

5. Resonator

6. Intake chamber

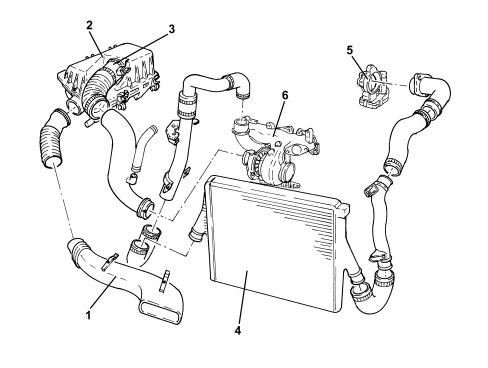

2.4 JTD 20v

AIR SUPPLY SYSTEM

1. Cold air intake

2. Air filter assembly

3. Air flow meter

4. Air-air heat exchanger (intercooler)

5. Throttle body

6. Turbocharger
