CONNECT PANEL REPLACE

Operation 5580P12 · CONNECT PANEL

Removing

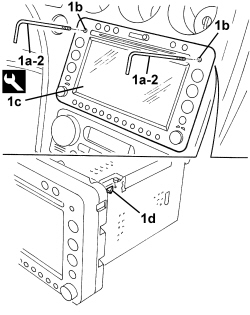

1. Fit the tools (1a) in the housings (1b) in the navigator (1c), thenn tighten them until a click is heard (the release of the inner retainers (1d).

2. Grip the tools (1a) and extract the navigator.

1. Disconnect the electrical connections (1a, 1b, 1c, 1d, 1e, 1f).

2. Disconnect the aerial connection.

3. Keep the navigator and undo the tools from the housings.

Refitting

- Check that the navigator is not damaged.

- Connect the aerial connection.

- Connect the electrical connections.

- Position the wiring carefully securing it to the retainers.

- Place the navigator carefully in position and attach the inner retainers. Take care not to pinch the electrical wires.

- Check that the navigator is working.
