RIGHT GAS DISCHARGE LIGHT CLUSTER - R.R.

Operation 5540B82 · HEADLAMPS

Removing

- Open the bonnet.

Op. 7055B54 UNDER ENGINE PROTECTION/GUARD - R.R.

Op. 7210E10 R.R. FRONT BUMPER

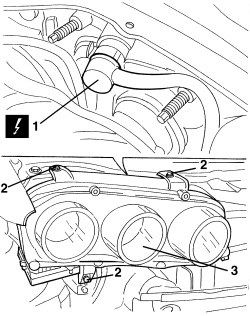

1. Disconnect the electrical connection for the light cluster.

Description	Component
RIGHT HEADLAMP	See F011 RIGHT HEADLAMP

2. Undo the bolts.

3. Remove the light cluster.

Refitting

- Check that the light cluster is not damaged.

- Position the light cluster and secure it using the bolts.

Component	Fastening	dia	Value (daNm)	Validity
LIGHT CLUSTER	Bolt	M6x20	0.7 ÷ 1.1

- Connect the electrical connection for the light cluster.

Op. 7210E10 R.R. FRONT BUMPER

Op. 7055B54 UNDER ENGINE PROTECTION/GUARD - R.R.

Op. 5540B39 DIPPED HEADLAMP LIGHT BEAM - ALIGN
