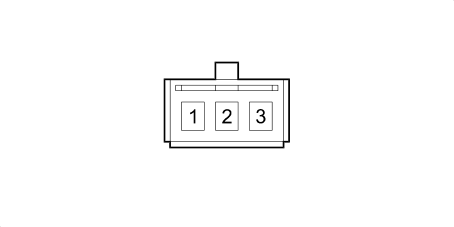

P045 LEFT FRONT TWEETER SPEAKER
| Wiring | Colour |
|---|---|
| See 20 DASHBOARD | NERO |
| Pin | Cable | Destination | |||
|---|---|---|---|---|---|
| Sec. | Colour | Node | Connect. | Pin | |
| 2 | 1 | BL | See D020B DASHBOARD/REAR COUPLING (DASHBOARD) | 11 | |
| 3 | 1 | BG | See D020B DASHBOARD/REAR COUPLING (DASHBOARD) | 12 | |
| Wiring | Colour |
|---|---|
| See 20 DASHBOARD | NERO |
| Pin | Cable | Destination | |||
|---|---|---|---|---|---|
| Sec. | Colour | Node | Connect. | Pin | |
| 2 | 1 | BL | See D020B DASHBOARD/REAR COUPLING (DASHBOARD) | 11 | |
| 3 | 1 | BG | See D020B DASHBOARD/REAR COUPLING (DASHBOARD) | 12 | |
