P032 centre front speaker
- Make
- Alfa Romeo
- Model
- Brera and Spider Factory Service Manual
- Year
- 2005–2010
- Section
- Various consumers › P032 centre front speaker
Connectors and pin-outsP032 centre front speaker

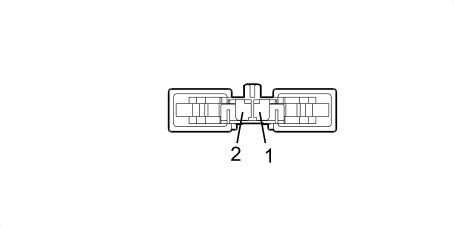

P032 CENTRE FRONT SPEAKER
| Wiring | Colour |
|---|---|
| See 20 DASHBOARD |
| Pin | Cable | Destination | |||
|---|---|---|---|---|---|
| Sec. | Colour | Node | Connect. | Pin | |
| 1 | 1 | RN | See D020B DASHBOARD/REAR COUPLING (DASHBOARD) | 9 | |
| 2 | 1 | BN | See D020B DASHBOARD/REAR COUPLING (DASHBOARD) | 10 | |
