I046 driver's seat belt switch
- Make
- Alfa Romeo
- Model
- Brera and Spider Factory Service Manual
- Year
- 2005–2010
- Section
- Switches › I046 driver's seat belt switch
Connectors and pin-outsI046 driver's seat belt switch

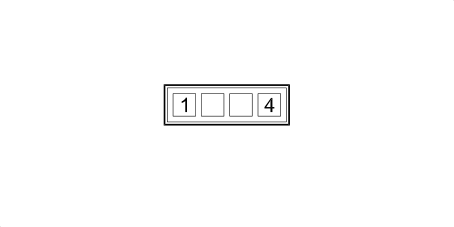

I046 DRIVER'S SEAT BELT SWITCH
| Wiring | Colour |
|---|---|
| See 36 LEFT SEAT | NERO |
| Pin | Cable | Destination | |||
|---|---|---|---|---|---|
| Sec. | Colour | Node | Connect. | Pin | |
| 1 | CB | See D070A DRIVER'S SEAT COUPLING (REAR) | 3 | ||
| 3 | NZ | See D070A DRIVER'S SEAT COUPLING (REAR) | 4 | ||
