I030 brake pedal switch

Make

Alfa Romeo

Model

Brera and Spider Factory Service Manual

Year

2005–2010

Section

Switches › I030 brake pedal switch

Connectors and pin-outsI030 brake pedal switch

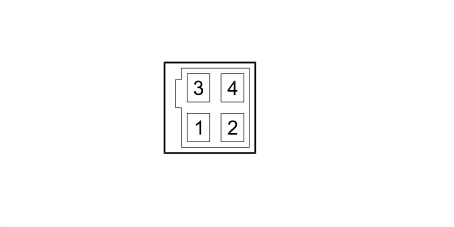

I030 BRAKE PEDAL SWITCH

2.4 JTD 20v

Wiring	Colour
See 12 FRONT	BIANCO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1		GN	X	See D001 FRONT/DASHBOARD COUPLING	16
				See M010A ENGINE MANAGEMENT ECU (FRONT)	80
2		BV		See B002A JUNCTION UNIT UNDER DASHBOARD (FRONT)	15
3		L		See B002A JUNCTION UNIT UNDER DASHBOARD (FRONT)	19
4		C		See B002A JUNCTION UNIT UNDER DASHBOARD (FRONT)	14

2.2 JTS, 3.2 JTS

Wiring	Colour
See 12 FRONT	BIANCO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1		GN	X	See D001 FRONT/DASHBOARD COUPLING	16
				See M010A ENGINE MANAGEMENT ECU (FRONT)	20
2		BV		See B002A JUNCTION UNIT UNDER DASHBOARD (FRONT)	15
3		L		See B002A JUNCTION UNIT UNDER DASHBOARD (FRONT)	19
4		C		See B002A JUNCTION UNIT UNDER DASHBOARD (FRONT)	14
