A020 starter motor

Make

Alfa Romeo

Model

Brera and Spider Factory Service Manual

Year

2005–2010

Section

Starting - recharging › A020 starter motor

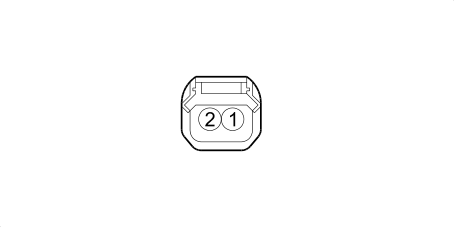

Connectors and pin-outsA020 starter motor

A020 STARTER MOTOR

A020A – Battery positive

Wiring	Colour
See 41 BATTERY POSITIVE

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
	35	R		See B099A MAXI FUSE BOX ON BATTERY (BATTERY POSITIVE)

A020A – Recharging

2.2 JTS, 2.4 JTD 20v

Wiring	Colour
See 45 RECHARGING

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
	16	R		See A010B ALTERNATOR (RECHARGING)

A020B – Engine

2.4 JTD 20v

Wiring	Colour
See 50 ENGINE

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	2,5	M		See D004A FRONT/ENGINE COUPLING (FRONT)	6

3.2 JTS

Wiring	Colour
See 50 ENGINE	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
	2,5	Z		See D004A FRONT/ENGINE COUPLING (FRONT)	6

2.2 JTS

Wiring	Colour
See 50 ENGINE

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
	2,5	RN		See D004A FRONT/ENGINE COUPLING (FRONT)	6
