A010 alternator

Make

Alfa Romeo

Model

Brera and Spider Factory Service Manual

Year

2005–2010

Section

Starting - recharging › A010 alternator

Connectors and pin-outsA010 alternator

A010 ALTERNATOR

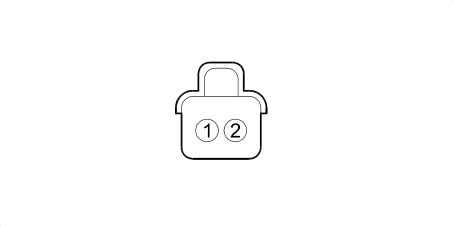

A010A – Engine

2.4 JTD 20v

Wiring	Colour
See 50 ENGINE	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1		HN		See D004A FRONT/ENGINE COUPLING (FRONT)	5

3.2 JTS

Wiring	Colour
See 50 ENGINE

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
		R		See D004A FRONT/ENGINE COUPLING (FRONT)	5

2.2 JTS

Wiring	Colour
See 50 ENGINE

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
		RN		See D004A FRONT/ENGINE COUPLING (FRONT)	5

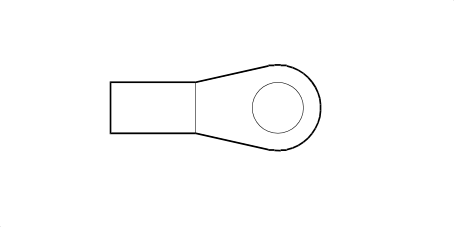

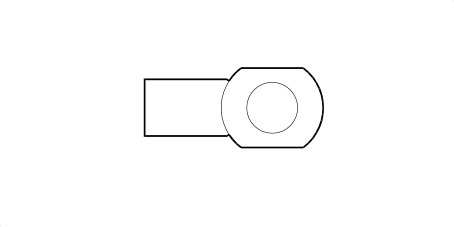

A010B – Recharging

2.2 JTS, 2.4 JTD 20v

Wiring	Colour
See 45 RECHARGING

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
	16	R		See A020A STARTER MOTOR (BATTERY POSITIVE)

3.2 JTS

Wiring	Colour
See 45 RECHARGING

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
	35	R		See B099A MAXI FUSE BOX ON BATTERY (BATTERY POSITIVE)
