C003 battery earth on bodyshell
- Make
- Alfa Romeo
- Model
- Brera and Spider Factory Service Manual
- Year
- 2005–2010
- Section
- Earths › C003 battery earth on bodyshell
Connectors and pin-outsC003 battery earth on bodyshell
C003 BATTERY EARTH ON BODYSHELL

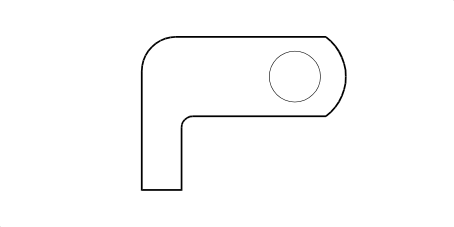

C003A – Battery negative
| Wiring | Colour |
|---|---|
| See 40 BATTERY NEGATIVE |
| Pin | Cable | Destination | |||
|---|---|---|---|---|---|
| Sec. | Colour | Node | Connect. | Pin | |
| 35 | N | See A001B BATTERY (BATTERY NEGATIVE) | |||

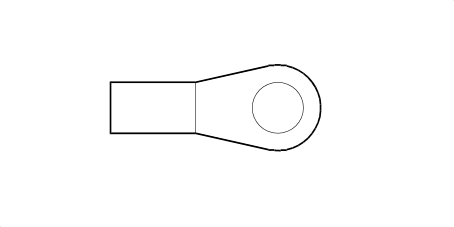

C003B – Battery negative
| Wiring | Colour |
|---|---|
| See 40 BATTERY NEGATIVE |
| Pin | Cable | Destination | |||
|---|---|---|---|---|---|
| Sec. | Colour | Node | Connect. | Pin | |
| 35 | N | See C002 BATTERY EARTH ON ENGINE | |||
