C002 battery earth on engine
- Make
- Alfa Romeo
- Model
- Brera and Spider Factory Service Manual
- Year
- 2005–2010
- Section
- Earths › C002 battery earth on engine
Connectors and pin-outsC002 battery earth on engine

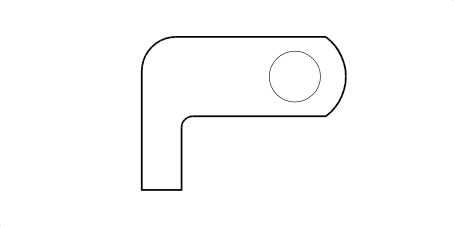

C002 BATTERY EARTH ON ENGINE
| Wiring | Colour |
|---|---|
| See 40 BATTERY NEGATIVE |
| Pin | Cable | Destination | |||
|---|---|---|---|---|---|
| Sec. | Colour | Node | Connect. | Pin | |
| 35 | N | See C003B BATTERY EARTH ON BODYSHELL (BATTERY NEGATIVE) | |||
