R.R. FRONT WING

Operation 7210E18 · EXTERNAL PARTS

Removing

Op. 7210E20 R.R. BONNET

Op. 7055B54 UNDER ENGINE PROTECTION/GUARD - R.R.

Op. 7055B90 LEFT FRONT WHEEL ARCH LINER - R.R.

- Or, alternatively

Op. 7055B91 RIGHT FRONT WHEEL ARCH LINER - R.R.

Op. 7210E10 R.R. FRONT BUMPER

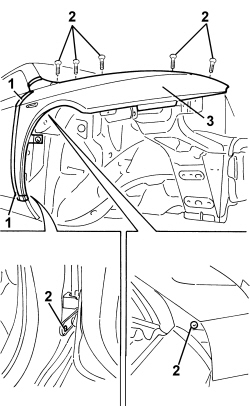

1. Protect the corner of the door (1a), the underdoor area (1b) and the base of the front pillar (1c) by applying adhesive tape.

2. Undo the fixing bolts.

3. Remove the wing.

Refitting

- Check that the wing is not damaged.

- Position the wing and screw in the bolts without tightening them.

Op. 7210E20 R.R. BONNET

- Check the alignment of the wing with the door and the bonnet lid.

Op. 7025A10 BONNET LID - ALIGNMENT

Op. 7005A14 FRONT SIDE DOOR - ADJUST CENTERING AND MOULDING - INCLUDES ADAPTATION OF HINGES AND SEALS ON DOOR COMPARTMENT

- Tighten the bolts.

Op. 7210E10 R.R. FRONT BUMPER

Op. 7055B91 RIGHT FRONT WHEEL ARCH LINER - R.R.

Op. 7055B90 LEFT FRONT WHEEL ARCH LINER - R.R.

Op. 7055B54 UNDER ENGINE PROTECTION/GUARD - R.R.
