P60 Left door mirror

Make

Alfa Romeo

Model

156 Factory Service Manual

Year

1997–2002

Section

Users › P60 Left door mirror

Connectors and pin-outsP60 Left door mirror

P60 Left door mirror

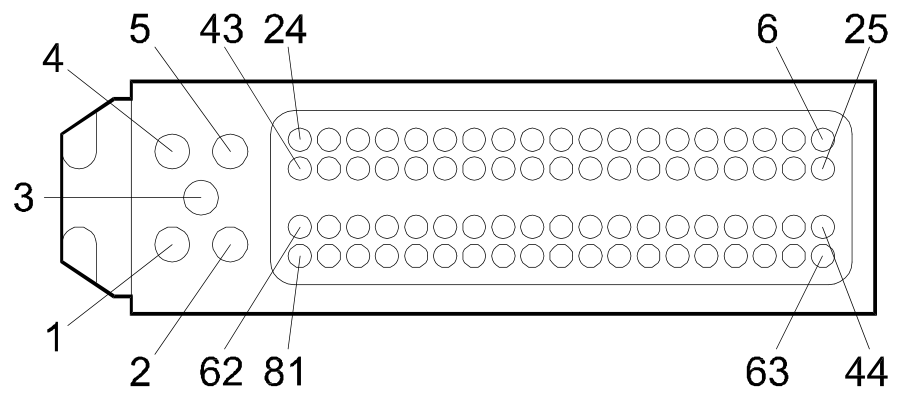

Connector P60 – front left door harness (white) – Euro3

Pin	mm²	Colour		To
3		ZB	violet/white	D30 pin 5
4		CL	orange/blue	D30 pin 20
5		AG	light blue/yellow	D30 pin 10
6		MN	brown/black	D30 pin 6
7		N	black	D30 pin 21 N50B pin B H41 pin 3 H40 pin 3 N50C pin B H55A pin 4 H40 pin 5 H41 pin 5

Connector P60 – front left door harness (white)

Pin	mm²	Colour		To
3		ZB	violet/white	D30 pin 5
4		BR	white/red	D30 pin 20
5		AG	light blue/yellow	D30 pin 9
6		MN	brown/black	D30 pin 6
7		N	black	D30 pin 21 N50B pin B H41 pin 3 H40 pin 3 N50C pin B H55A pin 4 H40 pin 5 H41 pin 5

Connector P60 – front left door harness (white) – RH drive adaptation

Pin	mm²	Colour		To
1		S	pink	D30 pin 1
2		Z	violet	D30 pin 3
3		CB	orange/white	D30 pin 29
4		LR	blue/red	D30 pin 28
5		AG	light blue/yellow	D30 pin 26
6		MN	brown/black	D30 pin 27
7		N	black	D30 pin 16

Wiring diagrams

• E3030
• E3032
• E6020
