P52 Rear power point

Make

Alfa Romeo

Model

156 Factory Service Manual

Year

1997–2002

Section

Users › P52 Rear power point

Connectors and pin-outsP52 Rear power point

P52 Rear power point

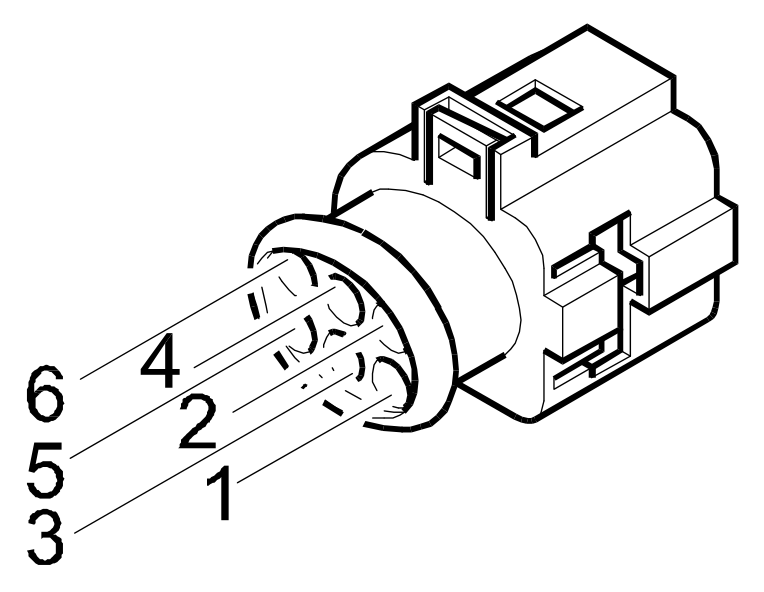

Connector P52 – rear harness (white)

Pin	mm²	Colour		To
1	0.5	GV	yellow/green	D20 pin 4 H30 pin 1
2	1.5	CN	orange/black	D20 pin 13
3	1.5	N	black	C30

Wiring diagrams

• E3070
