Reversing light switch - r+r

Operation 5550D22 · Brake and reversing lights

Removal

Place the vehicle on a lift.

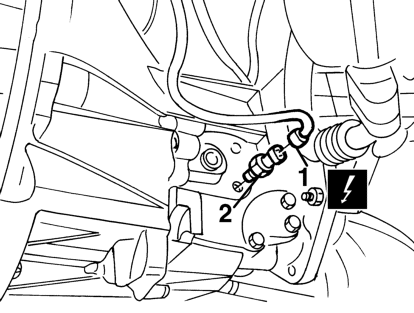

1 Raise the vehicle and disconnect the electrical connection for the reversing light switch.

Component I20 Reversing lights switch 1

2 Undo and remove the reversing lights switch.

Refitting

Check that the switch is not damaged and, if necessary, conduct an electrical test on it.

Tighten the reversing light switch.

Connect the electrical connection for the reversing lights switch.

Remove the vehicle from the lift.

Check the operation of the reversing light.
