Reversing light - r+r

Operation 5550D24 · Brake and reversing lights

Removal

Open the tailgate.

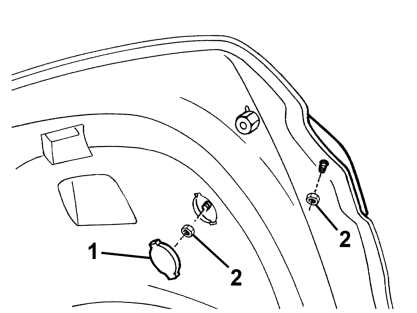

1 Working on the right end of the tailgate, remove the cover.

2 Unscrew the nuts.

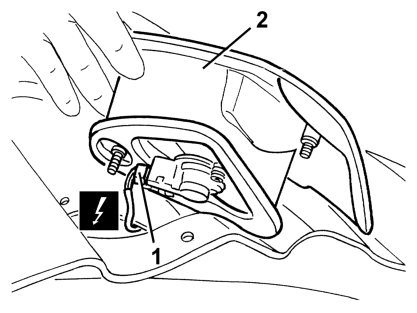

1 Move the light cluster slightly and disconnect the electrical connection.

Component F36 .Right( rear light cluster on moving part of boot lid) 1

2 Recover the light cluster.

Refitting

Check that the light cluster is not damaged.

Connect the electrical connection

Position the tail-light and secure with the nuts.

Fit the cover.

Check the operation of the reversing lights.
