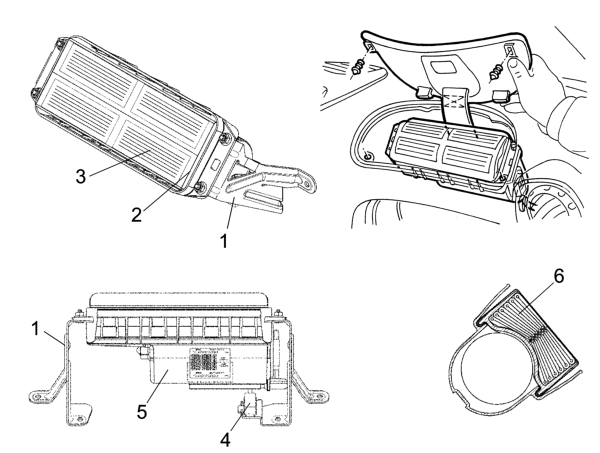

PASSENGER'S AIR BAG MODULE
- 1 Metal mounting
- 2 Bag cover
- 3 Warning plate
- 4 Connecting point
- 5 Gas generator
- 6 Folded bag
The following figure shows a view of assembly
