Clock spring

Make

Alfa Romeo

Model

147 Factory Service Manual

Year

2000–2002

Section

Special accessories › Clock spring

Electrical equipmentClock spring

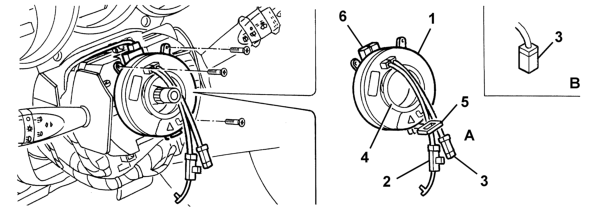

CLOCK SPRING

• A - Clock spring for versions with radio/Selespeed controls on the steering wheel
• B - Clock spring for versions with radio/Selespeed controls on the steering wheel
• 1 Clock spring
• 2 Electrical connection for connecting Air Bag module
• 3 Electrical connection for connecting horn
• 4 Rotation lock ring
• 5 Safety key
• 6 Point of connection to electrical system

The following figure shows a view of the assembly

12 Electrical
