Rpm sensor - r+r (1.6 TS)

Operation 5510C26 · 1.6 TS · Coil, ecu, sensors

Removal

Position the vehicle on the ramp.

Ensure that the ignition key is in the stop OFF, then disconnect the battery negative terminal.

Component A1B Battery

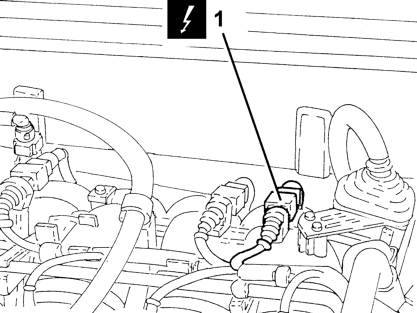

1 Disconnect the electrical connection for the engine rpm sensor.

Component K46 RPM sensor 1

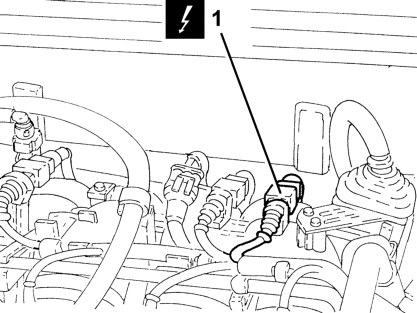

1 Disconnect the electrical connection for the engine rpm sensor.

Component K46 RPM sensor 1

Proceed with the removal See Op. 1072C44 Exhaust manifold heat shield on bulkhead - r+r .

Proceed with the removal See Op. 1080B62 Catalytic converter - r + r .

Proceed with the removal See Op. 1080B40 Catalytic pre-converter - r r .

Release the electrical wiring for the engine rpm sensor from the fastenings on the modular intake manifold.

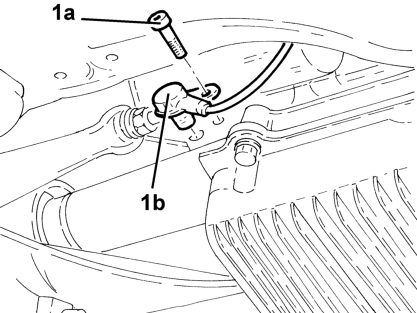

1 Undo the bolt 1a and remove the engine rpm sensor 1b.

Refitting

Place the engine rpm sensor back in its housing and secure it by tightening the bolt to the recommended torque.

M6 – Rpm sensor: (Crankase side) 0.9 daNm

Secure the electrical wiring for the engine rpm sensor to the fastenings on the modular intake manifold.

Proceed with the refitting See Op. 1080B62 Catalytic converter - r + r .

Proceed with the refitting See Op. 1080B40 Catalytic pre-converter - r r .

Proceed with the refitting See Op. 1072C44 Exhaust manifold heat shield on bulkhead - r+r .

Connect the electrical connection for the engine rpm sensor.

Connect the battery terminal (-).

Remove the car from the ramp.
