Operation 5530B10 · Battery and leads

Removal

1 Ensure that the ignition key is in the OFF position, then disconnect the battery negative terminal.

Component A1B Battery 1

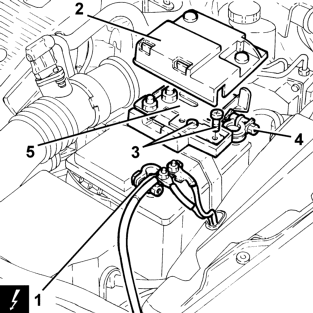

2 Open the maxi fuse box cover.

3 Undo the bolts securing the 'maxi-fuse' box to the battery.

4 Loosen the bolt fixing the battery terminal (+).

5 Release the maxi fuse box from the battery and move it to the side.

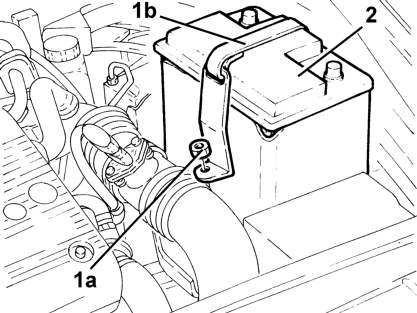

1 Undo the nut 1a for the battery fixing belt 1b.

2 Remove the battery.

Refitting

Place the battery back in its housing.

Secure the battery with its belt and tighten the nut.

Place the maxi fuse box back in its housing on the battery.

Tighten the bolt securing the battery's (+) terminal.

Tighten the bolts securing the maxifuse box to the battery.

Close the maxi fuse box cover.

Connect the battery terminal (-).
