Battery cradle - r r

Operation 5530B52 · Battery and leads

Removal

Proceed with the removal See Op. 5530B10 Battery - r+r .

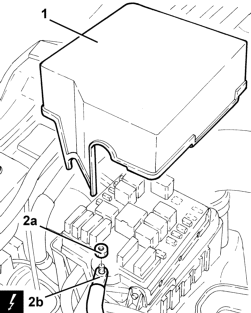

1 Reove the cover for the relay-fuse box.

2 Undo the nut 2a and disconnect the earth lead 2b from the relay-fuse box.

Component B1X Engine compartment junction unit 2b

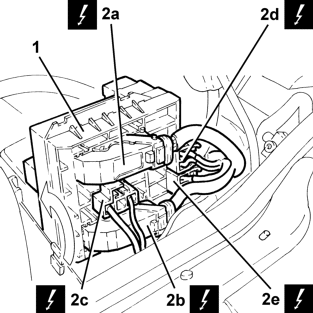

1 Turn the relay-fuse box upwards.

2 Disconnect the electrical connections 2a, 2b, 2c, 2d and 2e from the relay-fuse box.

Component B1A Engine compartment junction unit 2a

Component B1C Engine compartment junction unit 2b

Component B1E Engine compartment junction unit 2c

Component B1D Engine compartment junction unit 2d

Component B1B Engine compartment junction unit 2e

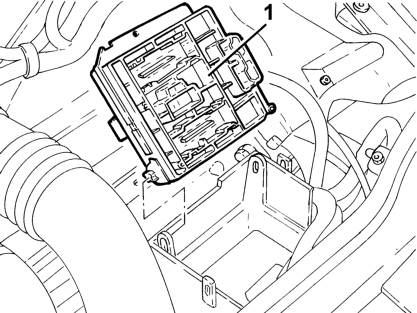

1 Release the relay-fuse box from the hinges and remove it.

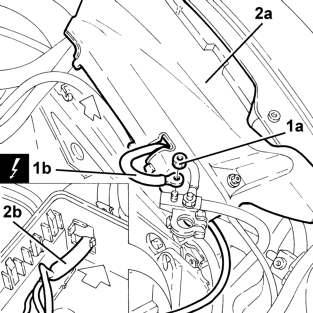

1 Undo the nut 1a and disconnect the earth lead 1b from the battery terminal (-).

Component A1B Battery 1b

2 Lift up the wiring protection 2a, as necessary, then release the earth lead 2b, disconnected previously, from the relay-fuse box casing.

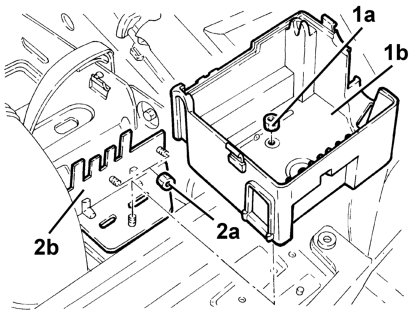

1 Undo the nut 1a and remove the relay-fuse box casing 1b.

2 Undo the nuts 2a and remove the relay-fuse box support 2b.

Release the electrical wiring from the fastenings on the battery drip tray.

NOTE: On the Selespeed version, the electrical connection for the gear selection hydraulic unit must be released from the battery drip tray.

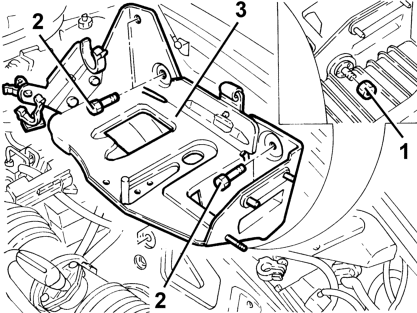

1 Undo the nut fixing the air filter to the battery drip tray.

2 Undo the bolts securing the battery cradle to the body.

3 Remove the battery cage.

Refitting

Place the battery drip tray back in its housing and secure it to the bodyshell using the bolts.

Tighten the nut fixing the air filter to the battery drip tray.

Secure the electrical wiring using the bands on the battery drip tray.

Place the relay-fuse box mounting back in its housing and secure it using the nuts.

Place the casing for the relay-fuse box back in its housing and secure it using the nut.

Place the earth lead in its housing through the opening in the relay-fuse box casing and connect it to the battery terminal (-).

Place the relay-fuse box back in its housing and secure it to the hinges.

Connect the electrical connections to the relay-fuse box.

Rotate the relay-fuse box in its housing.

Connect the earth lead to the relay-fuse box.

Place the relay-fuse box cover back in its housing.

Proceed with the refitting See Op. 5530B10 Battery - r+r .
