Rear bumper

Operation 7210E66 · External parts

Removal

See Op. 5540A94 L/h or r/h number plate light (one) - r+r (left and right sides)

See Op. 7055A30 L/h or r/h side rubbing strip (one) - r+r (left and right sides)

See Op. 7055B43 Rear supplementary wheel arch (one) - r+r (left and right sides)

Open the tailgate.

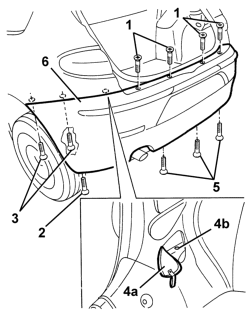

1 Undo the upper central bumper bolts.

Raise the car at the rear

2 Working from both sides of the car, undo the outer side bumper bolts.

3 Undo the top inner side bolts.

4 Open access flap 4a and undo bolts 4b.

5 Undo the lower bolts fixing the bumper.

6 Remove the bumper.

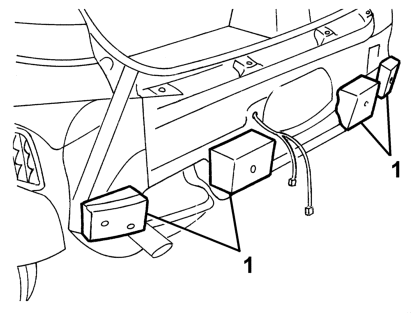

1 Prise out the buffers if necessary.

Refitting

Check that the rear bumper is undamaged.

Refit the buffers if they were removed.

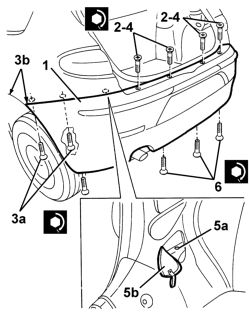

1 Fit the bumper.

2 Screw in the upper bumer bolts without tightening.

3 Tighten side bolts 3a, ensuring the bumpers are aligned with the wing at the side 3b.

Screw M6 – Front bumpers 3b: 0.75 daNm

4 Tighten the top central bumper retaining bolts.

Screw M6 – Front bumpers 4: 0.75 daNm

5 Tighten the lower bolts fixing the bumper.

Screw M6 – Front bumpers 5: 0.75 daNm

See Op. 7055B43 Rear supplementary wheel arch (one) - r+r (left and right sides)

See Op. 5540A94 L/h or r/h number plate light (one) - r+r (left and right sides)
