BodyRear supplementary wheel arch (one) - r+r

Rear supplementary wheel arch (one) - r+r

Operation 7055B43 · Exterior protections

Removal

See Op. 7055A30 L/h or r/h side rubbing strip (one) - r+r

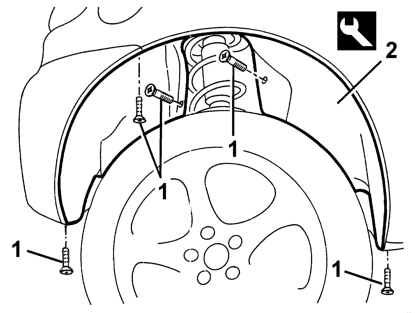

1 Undo the wheelarch bolts.

2 Using the special tool, detach the wheel arch and remove it.

Special tool 1.823.015.000 – Blade 2

Refitting

Check that the wheelarch is undamaged.

Fit the additional wheelarch.

Tighten the screws.

See Op. 7055A30 L/h or r/h side rubbing strip (one) - r+r
