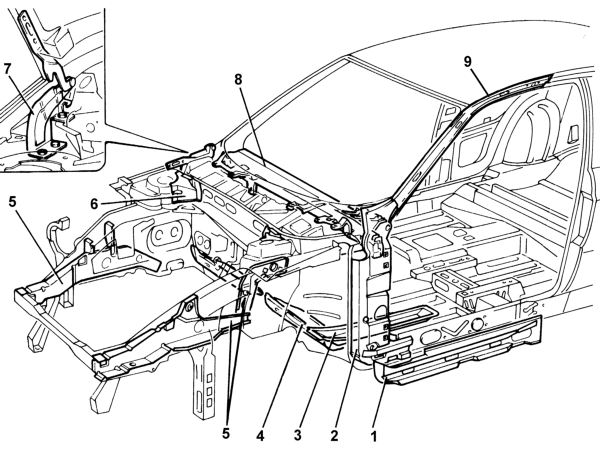

RESISTANCE TO FRONTAL IMPACTS

• 1 Floor pan reinforcements;
• 2 Rail reinforcements;
• 3 Strut reinforcements;
• 4 Footboard and dashboard box section reinforcments;
• 5 Front pillar reinforcements;
• 6 Suspension attachment reinforcements;
• 7 Bonnet retaining hooks;
• 8 Facia beam;
• 9 Windscreen pillar reinforcements

The crumple zone body is fitted with strengthening reinforcements to make the survival chamber stronger.

The body has undergone the following structural changes to meet this requirement:

• floor pan reinforcements;
• footboard and dashboard box section reinforcements;
• rail reinforcements;
• strut reinforcements
• reinforcements on the dome connection beam;
• pillar reinforcements;
• suspension attachment reinforcements;
• addition of bonnet retaining hooks;
• addition of high strength facia beam in magnesium alloy
