BodyOperation
OPERATION

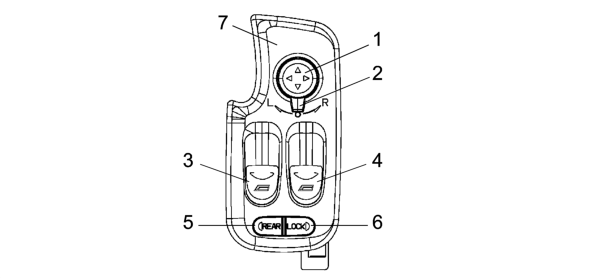

- 1 Door mirror positioning knob
- 2 L driver's side R passenger side electric mirror selector
- 3 L window control button
- 4 R window control button
- 5 REAR window selection button
- 6 Rear window LOCK button
- 7 Panel
The driver's door node (NPG) houses the following controls:
- A - E07SA 16 way
- B - E07SB 26 way
The Driver's Door Node performs the following functions:
- supports the functions described in the table;
- receives and sends information on the B-CAN line (e.g. diagnosis, warning lights, commands, data);
- interconnects with the driver's front door wiring
| No. | Function | Mode |
|---|---|---|
| F3 | power supply from key 2 discharge relay | D |
| F40 | download +15 signal | C |
| F89 | front puddle light shared power supply and timer L/R | C, D |
| F91 | download front door open signal | C |
| F99 | download boot opening control signal from remote control or facia switch and relay positive control for boot opening electromagnet (predisposition) | C, D |
| F104 | power supply for front window motors with manual and automatic up/down and signal download from anticrush seals; transmit button status for roger-beep and to maintain key 2 discharge relay power supply | C, D |
| F105 | control rear windows from driver's seat, transmit button status for roger-beep and to maintain key 2 discharge relay power supply | C |
| F107 | inhibition of rear window control from driver's side from buttons on rear doors transmit button status for roger-beep | C |
| F109 | download front window closure signal from recirculation control and iimplement raise | C, D |
| F110 | download front window closure signal from pollution sensor and implement raise | C, D |
| F111 | download front window closure signal from remote control and implement raise | C, D |
| F112 | download front window closure signal from rain sensor | C, D |
| F119 | manage door mirror deflector adjustment | D |
| F122 | transmit outdoor temperature signal to activate automatic rear window demist, door mirrors and windscreen/rear window nozzles | C |
| F181 | transmit outdoor temperature signal for climate control function | C |
| F187 | transmit outdoor temperature signal signal for supplementary heater function | C |
| F192 | download signal from outdoor temperature sensor and send value for display | C |
| F218 | self-diagnosis on B-CAN line | C |
NOTE:
Procedure for communication of subfunctions carried out by nodes is: C= via CAN; D = direct communication.

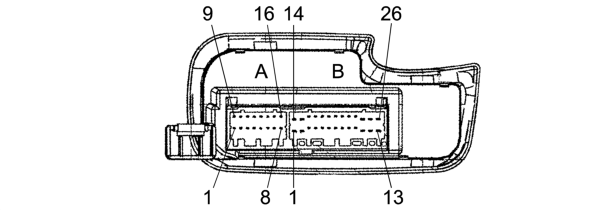

Rear view of connectors.
