Rear panel - r r

Operation 7040H50 · Roof panel lining

Removal

See Op. 7040L40 Front compartment scuff strip - r r

See Op. 7050A22 Rear seat cushion - r+r

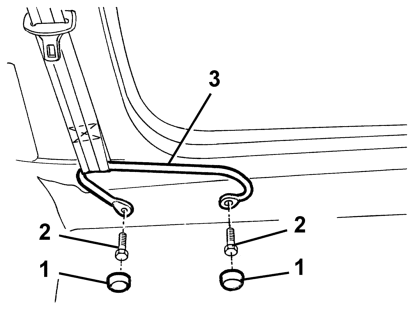

1 Prise up the bolt covers.

2 Unscrew the bolts

3 Move the seat belt retaining bracket.

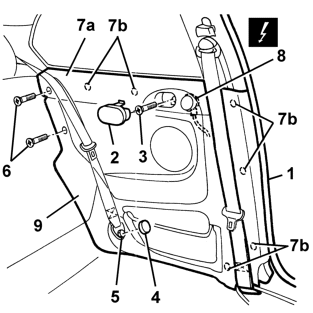

1 Remove the perimetral seal on the door near the rear side piece area.

2 Remove the ashtray.

3 Unscrew the bolt.

4 Remove the bolt cover.

5 Undo the bolt securing the end of the rear seat belt.

6 Lower the squab and undo the bolts.

7 Disengage the rear side piece 7a from the inner retainers 7b using the special tool.

Special tool 1.823.015.000 – Blade 7

8 Disconnect the electrical connections.

Component P47 Rear left tweeter speaker 8

Component P48 Rear right tweeter speaker 8

9 Recover the rear side piece.

Refitting

Check that the rear side piece is not damaged.

Connect the electrical connection

Engage the rear side piece on the inner retainers.

Tighten the bolts and raise the squab.

Positioni the end of the rear seat belt and tighten the bolt.

Bolt M7/16'' – Rear seat belt end.: 4.0 daNm

Fit the bolt cover.

Tighten the bolt.

Fit the ashtray.

Fit the perimetral seal on the door frame near the rear side piece.

Position the seat belt mounting bracket and secure it with the bolts.

Screw 7/16" – Front belt sliding bracket.: 4.0 daNm

Fit the bolt covers.

See Op. 7050A22 Rear seat cushion - r+r

See Op. 7040L40 Front compartment scuff strip - r r
