Timing cover - remove (page 2 of 2)

ENGINE

16

OVERHAUL

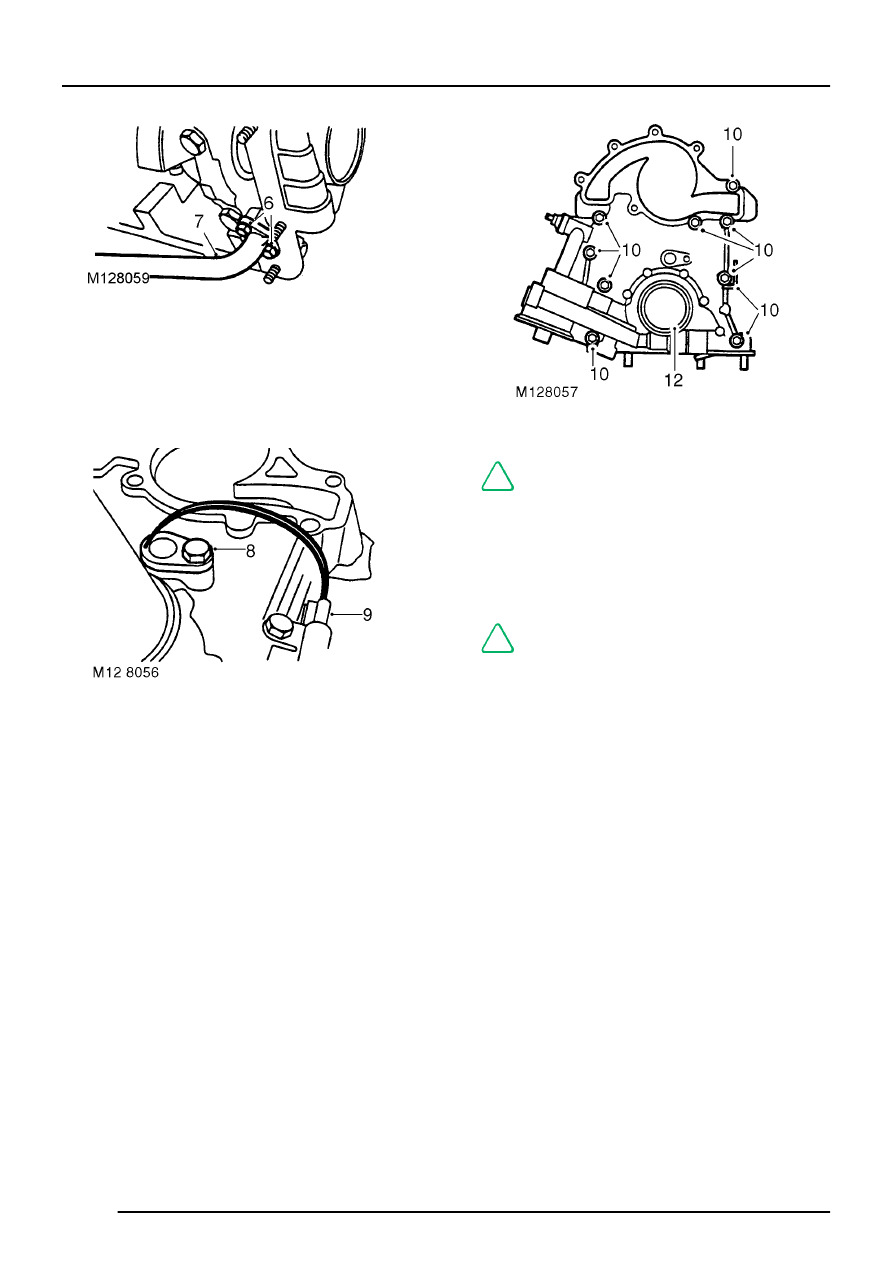

6. Remove 2 bolts securing oil pick-up pipe to oil

pump cover, withdraw pipe from cover; remove
and discard ’O’ ring.

7. Remove oil pick-up pipe, recover spacer from

stud.

8. Remove bolt securing camshaft sensor to

timing cover, withdraw sensor; remove and
discard ’O’ ring.

9. Release harness connector from mounting

bracket.

NOTE: New Range Rover timing cover
illustrated.

10. Noting their fitted position, remove 9 bolts

securing timing cover to cylinder block; remove
cover; collect camshaft sensor harness
mounting bracket.

NOTE: Timing cover is dowel located.

11. Remove oil pump drive gear.
12. Remove and discard gasket.
13. Remove and discard oil seal from timing cover.
