Timing chain and gears - inspection

Make

Land Rover

Model

Engines Engine Overhaul Manual v8 4.0 4.6

Section

Timing chain and gears - inspection

OVERHAULTiming chain and gears - inspection

ENGINE

OVERHAUL

17

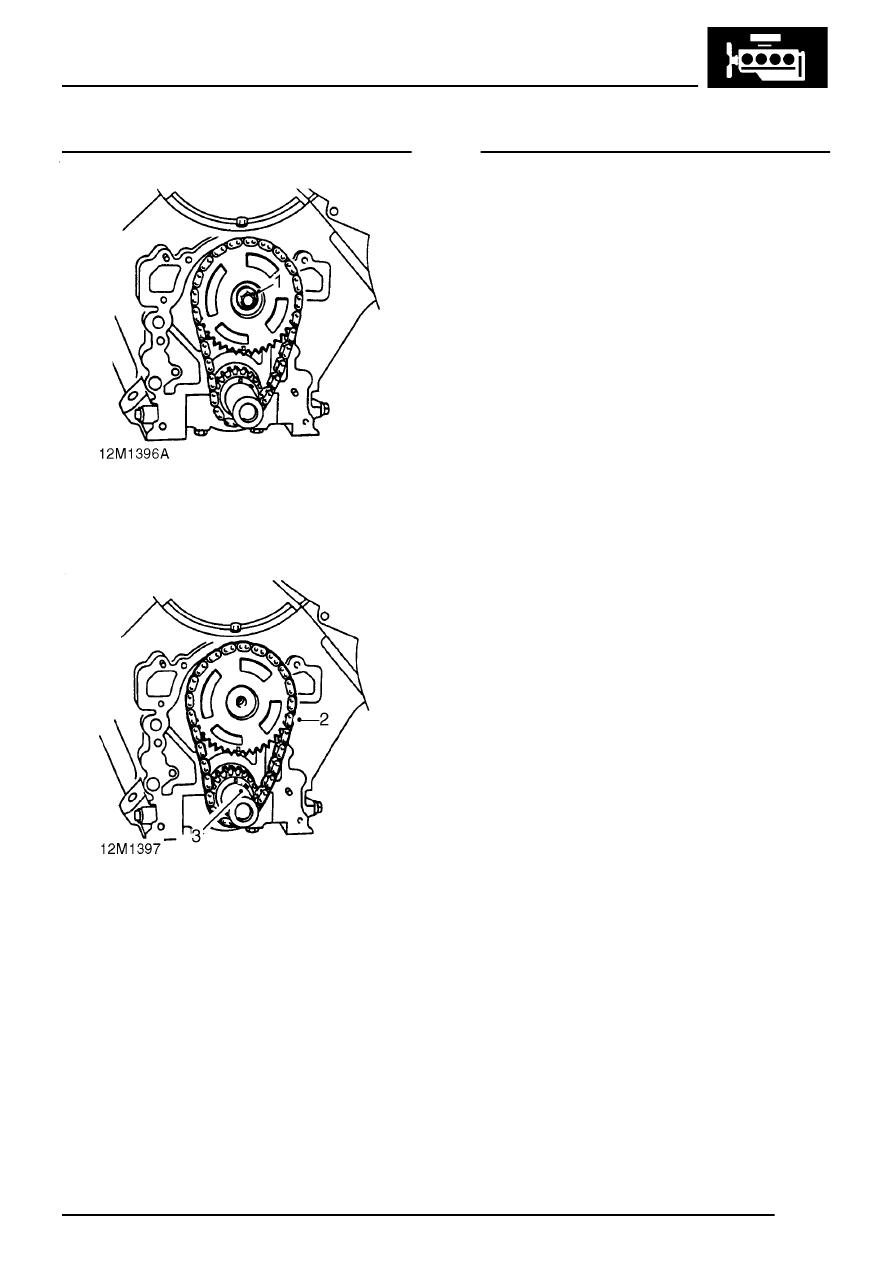

Timing gears - remove

1. Restrain camshaft gear and remove bolt

securing gear.

2. Remove timing chain and gears as an

assembly.

3. Collect Woodruff key from crankshaft.

Timing chain and gears - inspection

1. Thoroughly clean all components.
2. Inspect timing chain links and pins for wear.
3. Inspect timing chain gears for wear. Replace

components as necessary.
