Differential

TRANSFER BOX

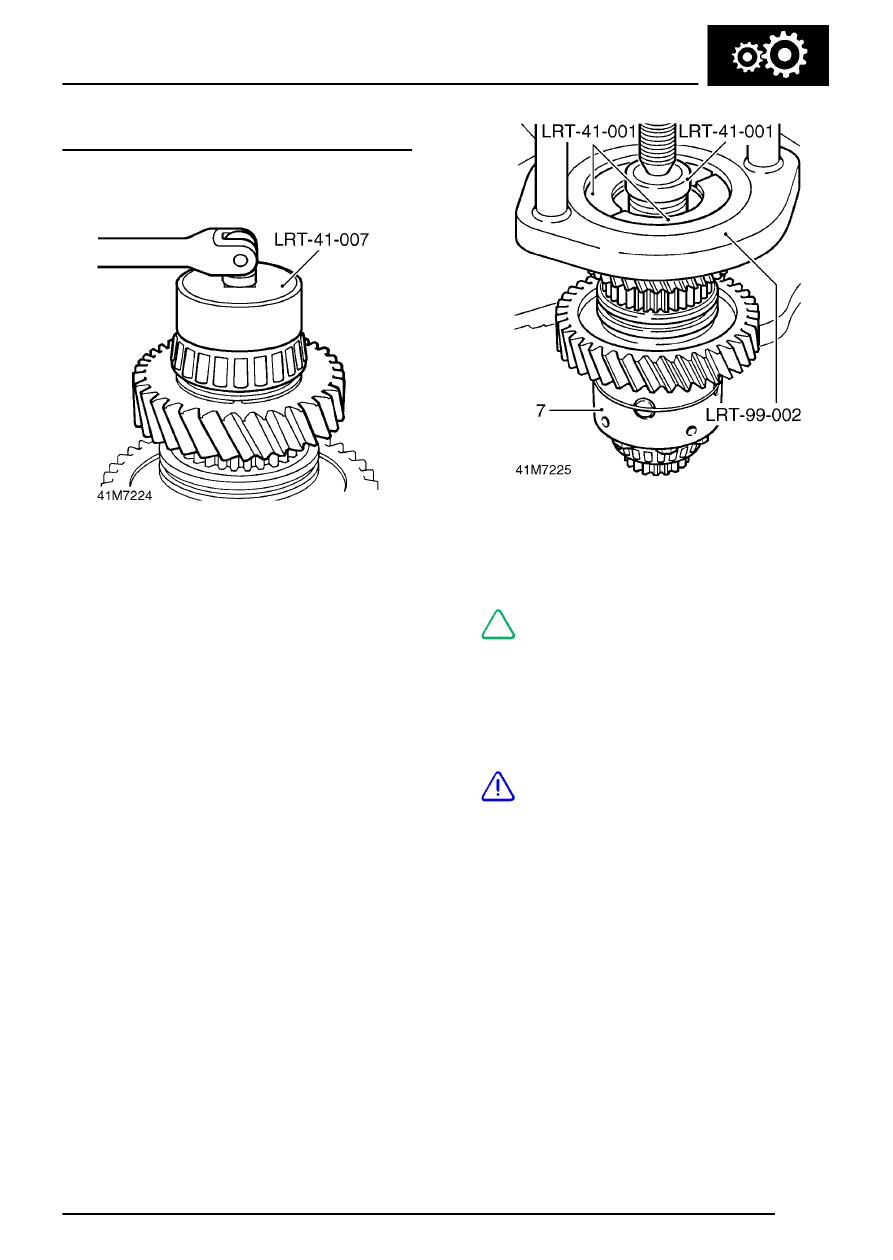

OVERHAUL

15

Differential

1. Secure differential in a soft-jawed vice.
2. Remove staking from bearing retaining nut.

3. Remove nut using tool LRT-41-007; discard

nut.

4. Secure hand press LRT-99-002 in a vice.
5. Secure collars LRT-41-001 around rear

bearing.

NOTE: This bearing is adjacent to
threaded end of differential shaft.

6. Position differential in hand press with thrust

button, part of tool LRT-41-001 between press
mandrel and differential shaft.

7. Press differential out of bearing.

CAUTION: Take care that differential does
not drop out of bearing.

8. Remove differential from press, discard

bearing.
