Evaporation control system

Description 1080E

1.2 8v · Euro 3

The evaporation control system prevents fuel vapours, i.e. the lighter hydrocarbon fractions that build up mainly in the tank, from escaping into the atmosphere.

1.2 16v · Euro 3

The evaporation control system prevents fuel vapours, i.e. the lighter hydrocarbon fractions that build up mainly in the tank, from escaping into the atmosphere.

1.4 16v

The evaporation control system prevents fuel vapours, i.e. the lighter hydrocarbon fractions that build up mainly in the tank, from escaping into the atmosphere.

1.2 8v · Euro 3

The system consists of a tank, a vapour separator, two float valves, a two way ventilation valve inside the fuel filler cap, a carbon filter and a carbon filter flushing solenod controlled by the control unit.

1.2 16v · Euro 3

The system consists of a tank, a vapour separator, two float valves, a two way ventilation valve inside the fuel filler cap, a carbon filter and a carbon filter flushing solenod controlled by the control unit.

1.4 16v

The system consists of a tank, a vapour separator, two float valves, a two way ventilation valve inside the fuel filler cap, a carbon filter and a carbon filter flushing solenod controlled by the control unit.

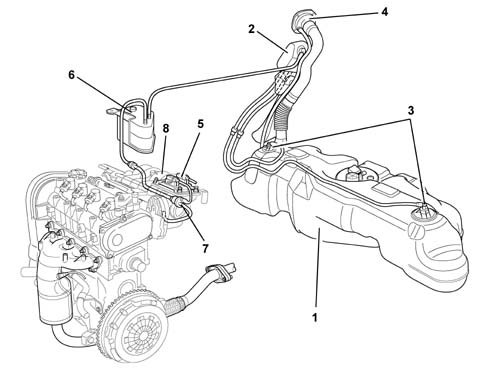

1.2 8v · Euro 3

The system operates mainly at high external temperatures when fuel temperature increases and the tendency to evaporate also increases: pressure rises inside the tank under these circumstances.

In particular, even with tank (1) full, the two float valves (3) remain open because they are situated higher than the vent pipe. They therefore always allow fuel vapours to reach separator (2) and prevent fuel from emerging

Fuel vapours reach carbon filter (6) when the pressure inside the tank causes ventilation valve (8) to open. This valve also allows air to be taken into the tank through the carbon filter if this is necessary following a drop in fuel level.

When the engine is running, the control unit controls the carbon filter flushing solenoid, which allows vapour to be taken in by the engine and thus flushing of the carbon filter.

If pressure inside the tank increases to dangerous levels due to component malfunction, the pressure relief valve in cap (4) allows pressure to be vented to the outside. If necessary, this valve can open in the opposite direction to ventilate the tank and prevent the vacuum from reaching excessive levels.

1, Fuel tank

2, Fuel vapour separator with multifunction valve

3, Float valves

4, Plug with pressure relief valve

5, Engine control unit

6, Carbon filter

7, Carbon filter flushing solenoid

8, Intake manifold

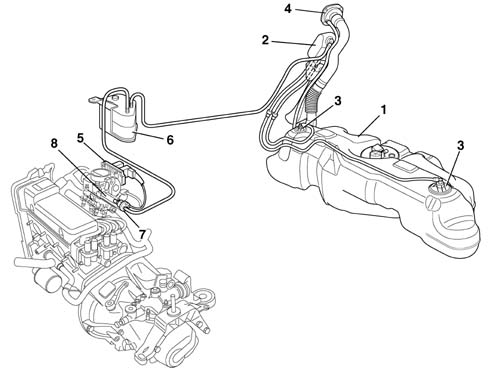

1.2 16v · Euro 3

The system operates mainly at high external temperatures when fuel temperature increases and the tendency to evaporate also increases: pressure rises inside the tank under these circumstances.

In particular, even with tank (1) full, the two float valves (3) remain open because they are situated higher than the vent pipe. They therefore always allow fuel vapours to reach separator (2) and prevent fuel from emerging

The fuel vapours reach the charcoal filter (6) via a calibrated port in a valve housed inside the vapour filter/separator assembly. This port also allows the introduction of air into the tank via the charcoal filter if this is necessary following a drop in the fuel level.

When the engine is running, the control unit controls the carbon filter flushing solenoid, which allows vapour to be taken in by the engine and thus flushing of the carbon filter.

If pressure inside the tank increases to dangerous levels due to component malfunction, the pressure relief valve in cap (4) allows pressure to be vented to the outside. If necessary, this valve can open in the opposite direction to ventilate the tank and prevent the vacuum from reaching excessive levels.

1, Fuel tank

2, Fuel vapour separator with multifunction valve

3, Float valves

4, Plug with pressure relief valve

5, Engine control unit

6, Carbon filter

7, Carbon filter flushing solenoid

8, Intake manifold

1.4 16v

The system operates mainly at high external temperatures when fuel temperature increases and the tendency to evaporate also increases: pressure rises inside the tank under these circumstances.

In particular, even with tank (1) full, the two float valves (3) remain open because they are situated higher than the vent pipe. They therefore always allow fuel vapours to reach separator (2) and prevent fuel from emerging

The fuel vapours reach the charcoal filter (6) via a calibrated port in a valve housed inside the vapour filter/separator assembly. This port also allows the introduction of air into the tank via the charcoal filter if this is necessary following a drop in the fuel level.

When the engine is running, the control unit controls the carbon filter flushing solenoid, which allows vapour to be taken in by the engine and thus flushing of the carbon filter.

If pressure inside the tank increases to dangerous levels due to component malfunction, the pressure relief valve in cap (4) allows pressure to be vented to the outside. If necessary, this valve can open in the opposite direction to ventilate the tank and prevent the vacuum from reaching excessive levels.

1, Fuel tank

2, Fuel vapour separator with multifunction valve

3, Float valves

4, Plug with pressure relief valve

5, Engine control unit

6, Carbon filter

7, Carbon filter flushing solenoid

8, Intake manifold

1.2 8v · Euro 3

Float valve

These valves are used for carrying out the following functions:

• preventing the escape of liquid fuel in the case of an accident where the vehicle overturns;
• allowing the breathing of fuel vapours from the tank to the separator and therefore to the activated charcoal filter;
• allowing the ventilation of the tank if there is a vacuum inside.

This valve consists of a body (1) and a float/needle valve (2).

The operation of the valve can be summarized in the following cases in relation to how full the fuel tank is.

1.2 16v · Euro 3

FLOAT VALVE

These valves are used for carrying out the following functions:

• preventing the escape of liquid fuel in the case of an accident where the vehicle overturns;
• allowing the breathing of fuel vapours from the tank to the separator and therefore to the activated charcoal filter;
• allowing the ventilation of the tank if there is a vacuum inside.

This valve consists of a body (1) and a float/valve (2).

The operation of the valve can be summarized in the following cases in relation to how full the fuel tank is.

1.4 16v

FLOAT VALVE

These valves are used for carrying out the following functions:

• preventing the escape of liquid fuel in the case of an accident where the vehicle overturns;
• allowing the breathing of fuel vapours from the tank to the separator and therefore to the activated charcoal filter;
• allowing the ventilation of the tank if there is a vacuum inside.

This valve consists of a body (1) and a float/valve (2).

The operation of the valve can be summarized in the following cases in relation to how full the fuel tank is.

1.2 8v · Euro 3

Tank full

If the tank is full, the float (2) shutters the port (3) preventing the liquid fuel from reaching the separator.

1.2 16v · Euro 3

Tank full

If the tank is full, the float (2) shutters the port (3) preventing the liquid fuel from reaching the separator.

1.4 16v

Tank full

If the tank is full, the float (2) shutters the port (3) preventing the liquid fuel from reaching the separator.

1.2 8v · Euro 3

Intermediate fuel level

If the level of the fuel in the tank decreases, the float (2) descends and rests via the side tabs (4) on the slits in the valve body (1) opening the port (3), which can be reached by the gases through the ring section between the float (2) and the valve body (1) inner seat. This allows the fuel vaopurs to escape from the tank and reach the separator and the activated charcoal filter, or through the same circuit to ventilate the tank when the pressure inside is below the pressure outside.

1.2 16v · Euro 3

Intermediate fuel level

If the fuel level in the tank decreases, the float (2) descends opening the port (3). This allows the fuel vaopurs to escape from the tank and reach the separator and the activated charcoal filter, or through the same circuit to ventilate the tank when the pressure inside is below the pressure outside.

1.4 16v

Intermediate fuel level

If the fuel level in the tank decreases, the float (2) descends opening the port (3). This allows the fuel vaopurs to escape from the tank and reach the separator and the activated charcoal filter, or through the same circuit to ventilate the tank when the pressure inside is below the pressure outside.

1.2 8v · Euro 3

Seal in the event of roll-over

If the vehicle overturns, irrespective of how full the tank is, the float (2), weighing down with its own weight and that of the fuel on the port (3), prevents the dangerous flow of fuel to the activated charcoal filter and the consequent risk of the vehicle catching fire.

1.2 16v · Euro 3

Seal in the event of roll-over

If the vehicle overturns, irrespective of how full the tank is, the float (2), weighing down with its own weight and that of the fuel on the port (3), prevents the dangerous flow of fuel to the vapour separator and the consequent risk of the vehicle catching fire.

1.4 16v

Seal in the event of roll-over

If the vehicle overturns, irrespective of how full the tank is, the float (2), weighing down with its own weight and that of the fuel on the port (3), prevents the dangerous flow of fuel to the vapour separator and the consequent risk of the vehicle catching fire.

1.2 8v · Euro 3

SPECIFCATIONS

Mounted in the front right wheelarch, this consists of an activated-charcoal filter element which absorbs the fuel vapours coming from the separator.

A one-way valve allows the entry of external (scavenging) air which comes into contact with the carbon granules, removing the petrol vapours and directing them through the outlet (1) to the inlet manifold when the fuel vapour solenoid valve is open.

1, From the multi-purpose valve

2, To the inlet manifold

3, One-way scrubbing valve

4, Fuel vapour solenoid valve

1.2 16v · Euro 3

SPECIFCATIONS

Mounted in the right rear wheelarch, this consists of an activated-charcoal filter element (1) which absorbs the fuel vapours coming from the separator (2) housed in the actual assembly.

The fuel vapours flow through a calibrated port (3) in the valve at the top of the separator.

A one-way valve (4) allows the entry of external (scavenging) air which comes into contact with the carbon granules, removing the petrol vapours and directing them through the outlet (5) to the inlet manifold when the fuel vapour solenoid valve is open.

1.4 16v

SPECIFCATIONS

Mounted in the right rear wheelarch, this consists of an activated-charcoal filter element (1) which absorbs the fuel vapours coming from the separator (2) housed in the actual assembly.

The fuel vapours flow through a calibrated port (3) in the valve at the top of the separator.

A one-way valve (4) allows the entry of external (scavenging) air which comes into contact with the carbon granules, removing the petrol vapours and directing them through the outlet (5) to the inlet manifold when the fuel vapour solenoid valve is open.

1.2 8v · Euro 3

Specifications

This is directly on the modular inlet manifold, and is controlled by the fuel injection control unit.

The function of the solenoid is to allow fuel vapours stored in the engine intake canister through to the engine intake.

If there is no supply the solenoid valve is in the closed position, preventing the fuel vapours from enriching the mixture too much.

1.2 16v · Euro 3

Specifications

This is directly on the modular inlet manifold, and is controlled by the fuel injection control unit.

The function of the solenoid is to allow fuel vapours stored in the engine intake canister through to the engine intake.

If there is no supply the solenoid valve is in the closed position, preventing the fuel vapours from enriching the mixture too much.

1.4 16v

Specifications

This is directly on the modular inlet manifold, and is controlled by the fuel injection control unit.

The function of the solenoid is to allow fuel vapours stored in the engine intake canister through to the engine intake.

If there is no supply the solenoid valve is in the closed position, preventing the fuel vapours from enriching the mixture too much.

1.2 8v · Euro 3

Operation

The solenoid valve is operated by the control unit according to a specific strategy (see 1056)

When energized, the electromagnet (1) attracts the shutter (2), which overcomes the load of the flat spring (3) and closes the hole (4), preventing the passage of fuel vapours.

1.2 16v · Euro 3

Operation

The solenoid valve is operated by the control unit according to a specific strategy (see 1056)

When energized, the electromagnet (1) attracts the shutter (2), which overcomes the load of the flat spring (3) and closes the hole (4), preventing the passage of fuel vapours.

1.4 16v

Operation

The solenoid valve is operated by the control unit according to a specific strategy (see 1056)

When energized, the electromagnet (1) attracts the shutter (2), which overcomes the load of the flat spring (3) and closes the hole (4), preventing the passage of fuel vapours.

1.2 8v · Euro 3

Multifunction VALVE

The valve functions are:

• pressurizing the tank
• retention
• seal in the event of roll-over

1.2 16v · Euro 3

Operation

This valve is built into the fuel filler cap, and it carries out the following functions, depending on the pressure present in the tank:

• it discharges to the outside any surplus pressure which is created inside the tank (safety function); the pressure acts on the plate (2) and, overcoming the load of the spring (1), allows the surplus vapours to be discharged to the outside.
• it allows external air to flow into the tank when an excessive vacuum is created in the tank, following the consumption of fuel (ventilation function). In this case, when the vacuum exceeds the load of the spring (4), it moves the valve (3), allowing air to enter.

1.4 16v

Operation

This valve is built into the fuel filler cap, and it carries out the following functions, depending on the pressure present in the tank:

• it discharges to the outside any surplus pressure which is created inside the tank (safety function); the pressure acts on the plate (2) and, overcoming the load of the spring (1), allows the surplus vapours to be discharged to the outside.
• it allows external air to flow into the tank when an excessive vacuum is created in the tank, following the consumption of fuel (ventilation function). In this case, when the vacuum exceeds the load of the spring (4), it moves the valve (3), allowing air to enter.

1.2 8v · Euro 3

Pressurizing the tank

The tank is maintained at a pressure of 30-45 mbar by means of a fluorosilicone rubber valve, which rests on a sealing edge.

The valve is supported by a stainless steel plate and counteracted by a spring.

When the pressure in the tank exceeds the specified value, it overcomes the resistance of the spring and the valve is able to rise, allowing vapours to flow to the canister.

When the pressure returns to the correct limits, the valve closes again.

retaining

Under particular driving conditions, a vacuum could be created in the tank because of:

• temperature changes
• fuel consumption.

In this case, the valve's function is to restore the pressure of the tank by allowing air in.

A fault in this function could cause the engine to miss or stall, because of difficulties in supplying the fuel pump.

This function is carried out by the 'goose beak' valve formed directly out of the fluorosilicone rubber.

Seal in the event of roll-over

The roll-over function prevents fuel from leaking from the tank if the vehicle overturns or is on a very steep slope.

During normal driving of the vehicle (bends, acceleration, braking, etc.), the fuel is shaken up and may spill into the canister.

The car's high roll-over sensitivity prevents this spillage.

The roll-over closure angle is less than 33°.

Operation

This valve is built into the fuel filler cap, and it carries out the following functions, depending on the pressure present in the tank:

• it discharges to the outside any surplus pressure which is created inside the tank (safety function); the pressure acts on the plate (2) and, overcoming the load of the spring (1), allows the surplus vapours to be discharged to the outside.
• it allows external air to flow into the tank when an excessive vacuum is created in the tank, following the consumption of fuel (ventilation function). In this case, when the vacuum exceeds the load of the spring (4), it moves the valve (3), allowing air to enter.
