Accelerator pedal - r + r

Operation 1068A14 · ACCELERATOR PEDAL CONTROL

1.1

Removing

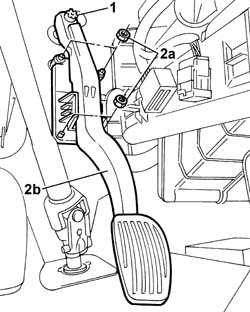

1. Release the accelerator cable from the pedal.

2. Undo the fixing nuts (2a) and remove the pedal (2b).

1.2 8v

Removing

1. Release the accelerator cable from the pedal.

2. Undo the fixing nuts (2a) and remove the pedal (2b).

1.1

Refitting

Fit the accelerator pedal in place and tighten the nuts fixing the pedal to the bodyshell.

Secure the accelerator cable in place on the pedal.

1.2 8v

Refitting

Fit the accelerator pedal in place and tighten the nuts fixing the pedal to the bodyshell.

Secure the accelerator cable in place on the pedal.
