Electrical equipmentThird stop light - r+r
Third stop light - r+r
Removing
Disconnect the battery negative terminal.

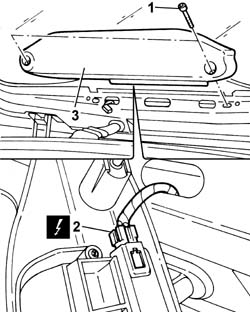

1. Undo the retaining bolts.
2. Disconnect the electrical connection.
| Name | Connector | |
|---|---|---|
| 2 | Additional ("third brake light") | F40 |
3. Remove the third brake light complete with surround.
1. Undo the retaining bolts.
2. Separate the third brake light (2a) from the surround (2b).
Refitting
Fit the third brake light on the surround and tighten the fixing bolts.
Connect the electrical connection.
| Name | Connector | |
|---|---|---|
| Additional ("third brake light") | F40 |
Fit the third brake light complete with surround and tighten the fixing bolts.
