REVERSE GEAR ENGAGED SIGNAL CHECK

Check 5550DB

- Turn the ignition key to the ON position.

- Engage reverse gear.

- Position the red probe of the voltmeter at pin 3 of the 18-way Connect connector and the negative to earth.

- Check that there is a 12 Volt voltage present.

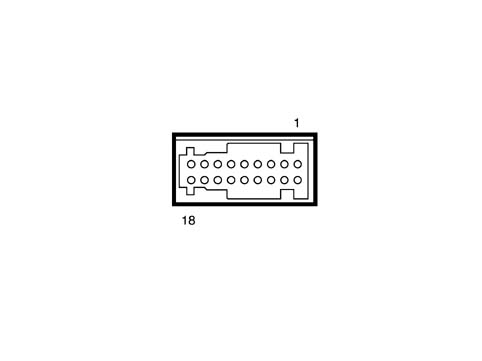

Connect pin out
