Air bag module - r+r

Operation 5580C18 · Air bag system

Before removing and refitting the Air Bag module, the following preliminary operations must be carried out: (1) turn the ignition off ('STOP) and remove the key; (2) disconnect the battery terminals and insulate them; (3) wait at least 10 minutes before proceeding.

FOLLOW ALL THE RECOMMENDED SAFETY RULES (see assembly 5508C - AIR BAG SYSTEM).

Removing

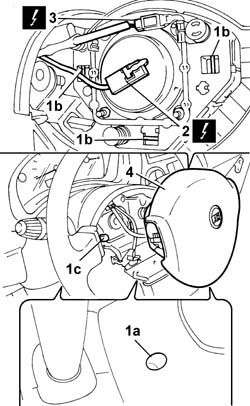

1. Using a suitable tool, work through the holes (1a) located behind the steering wheel, lever on the clips (1b) and disengage the Air Bag module from the anchoring points (1c).

2. Lift the safety catch and disconnecct the electrical connection.

3. Disconnect the electrical connection.

4. Remove the Air Bag module.

Place the Air Bag module in the special cupboard, resting it on a free surface with the bag facing upwards.

Refitting

Follow these precautions:

Handle the Air Bag module with extreme caution, making sure it does not sustain impacts that would render it unusable. Ensure the battery is disconnected.

If a new module is being fitted, attach the labels. Detach the removable part of the adhesive label from the new module and put it in a specific file recording the vehicle details (model, registration data, chassis no.) and the serial no. of the old module. This file should be kept for future checks. A new label is supplied together with the module, to be stuck on top of the existing one. However, it should first be perforated to indicate the month and 14 years after the year when the module is fitted (e.g. 2017 will correspond to 2003).

Connect the electrical connections.

Fit the Air Bag module in its seating in the steering wheel and press until it locks into place.

Connect the battery terminals.

Check the operation of the system using the Examiner or another tester.
