Alternator brackets/mount/spacer - r r

Operation 5530A40 · Alternator and components

1.3 JTD 16v

Removing

Remove the car from the ramps.

Disconnect the battery negative terminal.

- 4450B04 right front wheel r r

- 1092G11 Engine components single drive BELT - R.R. for versions with air conditioning

- 5530A14 alternator - r+r for versions with air conditioner

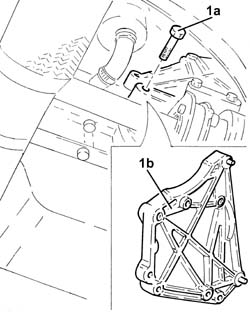

1. Undo the bolts (1a) and remove the alternator mounting (1b).

Refitting

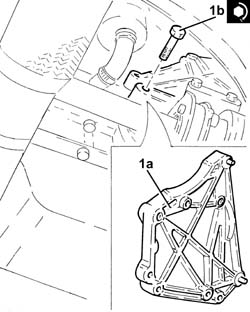

1. Fit the alternator mounting (1a) in place and secure it tightening the bolts (1b) to the recommended torque.

	Fastening	Component	Ø	Value (daNm)
1b	Bolt	ALTERNATOR SUPPORT	M8	(Engine crankcase side) 2.3 ÷ 2.8

- 5530A14 alternator - r+r for versions with air conditioner

- 1092G11 Engine components single drive BELT - R.R. for versions with air conditioning

- 4450B04 right front wheel r r

Connect the battery negative terminal.

Remove the vehicle from the ramp.
