Q041 passenger side head bag
- Make
- Fiat
- Model
- Panda Factory Service Manual
- Year
- 2003–2012
- Section
- Safety devices › Q041 passenger side head bag
Connectors and pin-outsQ041 passenger side head bag

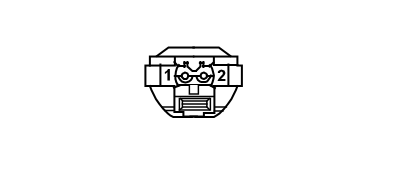

Q041 PASSENGER SIDE HEAD BAG
| Wiring | Colour |
|---|---|
| See 25 REAR |
| Pin | Cable | Destination | |||
|---|---|---|---|---|---|
| Sec. | Colour | Node | Connect. | Pin | |
| 1 | 0,5 | S | See M060B AIR BAG CONTROL UNIT (REAR) | 20 | |
| 2 | 0,5 | W | See M060B AIR BAG CONTROL UNIT (REAR) | 19 | |
