C053 side bag + head bag earth
- Make
- Fiat
- Model
- Panda Factory Service Manual
- Year
- 2003–2012
- Section
- Earths › C053 side bag + head bag earth
Connectors and pin-outsC053 side bag + head bag earth
C053 SIDE BAG + HEAD BAG EARTH

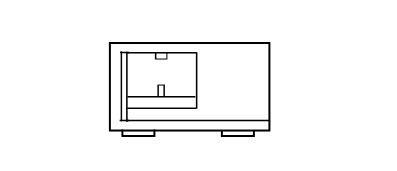

C053A – Rear
| Wiring | Colour |
|---|---|
| See 25 REAR | nero |
| Pin | Cable | Destination | |||
|---|---|---|---|---|---|
| Sec. | Colour | Node | Connect. | Pin | |
| 1 | 0,5 | N | See C050A AIR BAG SYSTEM EARTH (REAR) | 2 | |

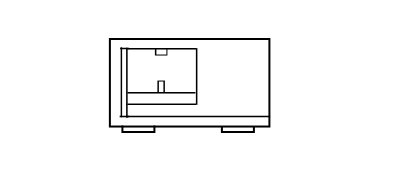

C053B – Rear
| Wiring | Colour |
|---|---|
| See 25 REAR | nero |
| Pin | Cable | Destination | |||
|---|---|---|---|---|---|
| Sec. | Colour | Node | Connect. | Pin | |
| 1 | 0,5 | NZ | See C050A AIR BAG SYSTEM EARTH (REAR) | 1 | |
