Brake pump, reservoir and load proportioning valve

Description 3330C

The brake control pump is integral with the brake servo Characteristic of working principle 3330D brake vacuum system

The hydraulic brake system fluid reservoir is press-fitted to the upper part of the pump.

The reservoir is fitted with an attachment for connecting the supply pipe to the clutch release control hydraulic system.

On cars with a robotised or automatic gearbox, the attachment on the connection pipe to the clutch pump is plugged because clutch engagement and release are implemented automatically.

The reservoir is fitted with a low fluid level indicator, which is activated when the fluid drops below a certain level. This informs the Body Computer, which turns on the warning light on the control panel.

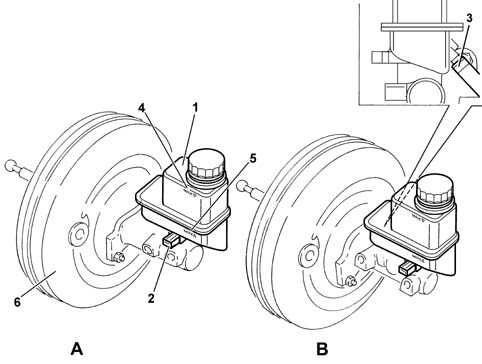

A, Brake pump for versions without ESP

B, Brake pump for versions with ESP

1, Brake fluid reservoir

2, Low brake fluid level sensor

3, Attachment for clutch pump supply pipe (plug for versions with rotobised gearbox (MTA)

4, Brake fluid MAX level gauge

5, Brake fluid MIN level gauge

6, Brake servo
