Brake pedal - r+r manual gearbox versions

Operation 3330B22 · PEDAL UNIT

Removing

- 7040A37 fuse box cover - r r

- 3330B26 clutch pedal - r+r

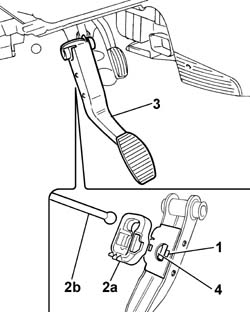

1. Press the tabs on the retaining device (white).

2. Remove black retainer (2a), then unscrew the pushrod of brake servo (2b) from the brake pedal.

3. Remove the brake pedal from its seat on the pedal mount.

4. Recover the brake servo pushrod ball head seat cup.

After each dismantling operation the black coloured retaining device (1a) for the brake servo push rod must always be replaced even if it appears to be intact.

Refitting

Position the brake pedal in its seat on the pedal unit.

1. Fit the new retaining device (1a) onto brake pedal (1b) to secure the retaining clips (1c). Position the cover (1d) for the brake servo push rod spherical head.

Lift up the brake pedal and position the brake servo push rod by the retaining device.

Press the brake pedal to engage the brake servo push rod with the retaining device.

- 3330B26 clutch pedal - r+r

- 7040A37 fuse box cover - r r
