Rear panel - r r

Operation 7040H50 · Roof panel lining

Removing

- 7040H80 parcel rack

- 7040B10 load platform (luggage platform) trim - r+r

- 7050A20 one-piece rear seat cushion - r r

1. Remove the plastic cap (1a) and undo the fixing bolt (1b).

2. Release the lower fastening for the rear seat belt and place it outside of the work area.

Adjust the special levers and fold the rear seat backrest over.

1. Undo the retaining bolts.

2. Release the rear panel from the fastenings and remove it.

Refitting

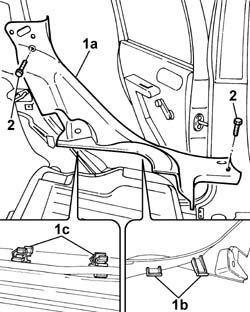

1. Place the rear panel (1a) in position fitting the tabs (1b) in the special clips (1c).

2. Tighten the bolts.

Restore the rear seat backrest to its correct position.

Position the rear seat belt lower fastening and tighten the fixing bolt to the recommended torque.

Position the plastic cap on the lower bolt fixing the rear seat belt.

- 7050A20 one-piece rear seat cushion - r r

- 7040B10 load platform (luggage platform) trim - r+r

- 7040H80 parcel rack
