EngineCounter-rotating shaft drive
COUNTER-ROTATING SHAFT DRIVE
CONSTRUCTION FEATURES

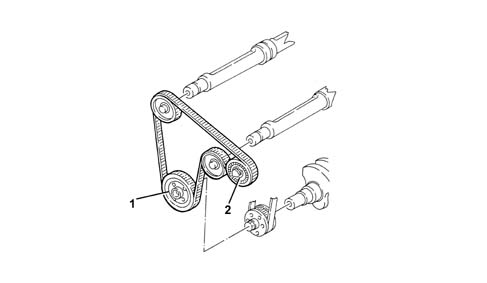

The counter-balance shaft drive belt is the double-toothed type, driven by the drive pulley (1) fitted on the crankshaft.
The tension is set using the tensioner (2).
