CRANK CASE AND COMPONENTS

Description 1012A

2.0 JTS

CONSTRUCTION FEATURES

The engine block is cast iron, with high mechanical strength.

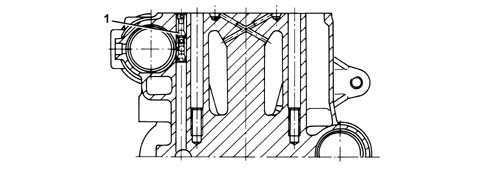

The crankshaft is supported by means of five main bearings (1).

The cylinders are formed directly in the engine block, and are graded into three sizes plus one oversize.

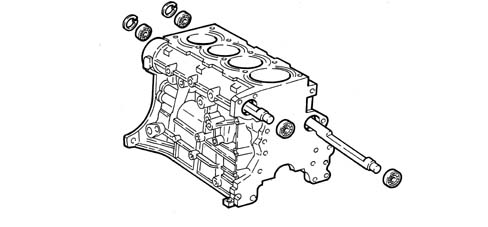

The engine block also houses the two counter-rotating shafts, which are supported by a central bush and a ball bearing at the front and rear.

There are special channels in the engine block walls which allow the flow of coolant and lubricating oil.

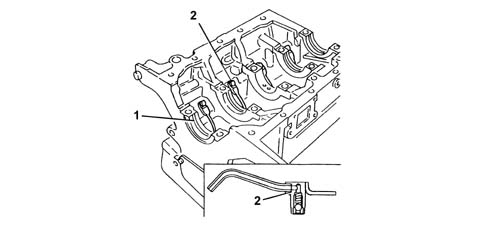

At the bottom of each cylinder, there is a jet (2) from which oil is sprayed onto the piston crown.

A cut-off valve (1) fitted inside the vertical channel carrying oil to the cylinder head prevents the system emptying when the engine is off.

1.8 T.SPARK

CONSTRUCTION FEATURES

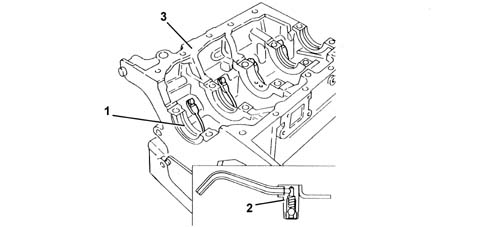

1 - Bearing supports

2 - Jets

3 - Cylinder block/crankcase

3.2 V6

CONSTRUCTION FEATURES

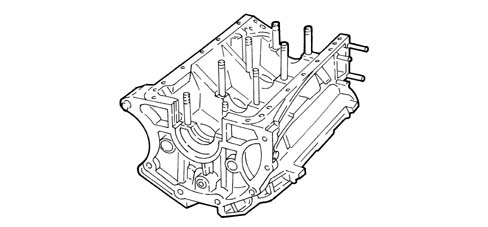

The light aluminium and silicon alloy cylinder block/crankcase has good mechanical resistance and thermal conductivity properties.

The crankshaft is supported by means of four main bearings.

There are special channels in the engine block walls which allow the flow of coolant and lubricating oil.
